Body Specifications

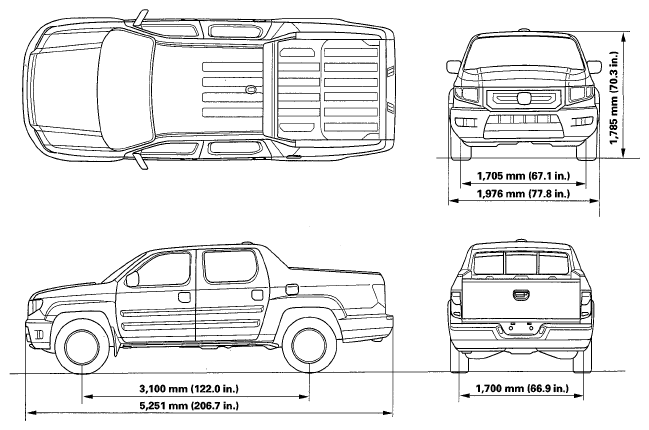

Fig 1: Identifying Body Dimensions
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
