Air Intake Duct Removal/Installation

  1. Remove the air cleaner (see THROTTLE BODY CLEANING ).
  2. Remove air intake duct B.

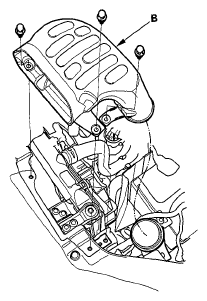

    Fig 1: Identifying Air Intake Duct
    G05964723Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove air intake duct A.
    Fig 2: Identifying Air Intake Duct
    G05964724Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the parts in the reverse order of removal.
