Component Location Index
Component Location Index

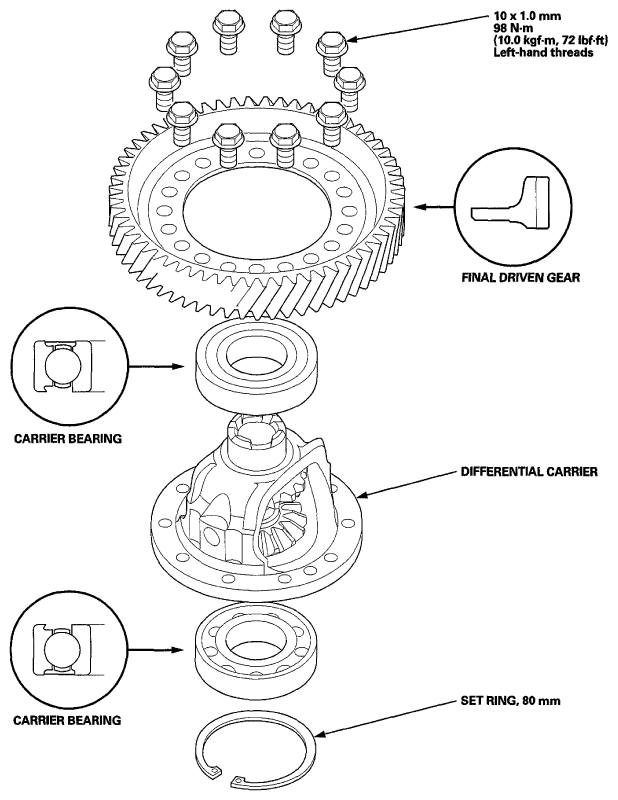

Fig 1: CVT Differential Component Location With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
