Middle Crossmember Gusset Replacement

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the body or the related parts.
  1. Remove the rear side trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREA ).
  2. Remove the carpet as needed, remove the bolts (A, B) and detach the harness clips (C), then remove the middle crossmember gusset (D).

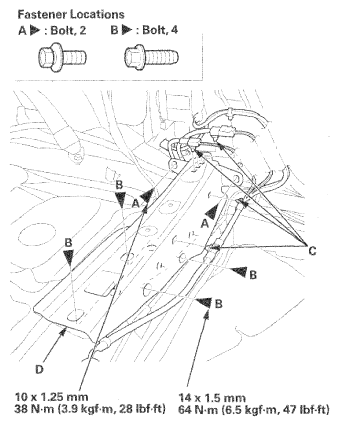

    Fig 1: Middle Crossmember Gusset, Clips And Bolts With Torque Specifications
    G06953582Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the gusset in the reverse order of removal and push the clips into place securely.
