Component Location Index

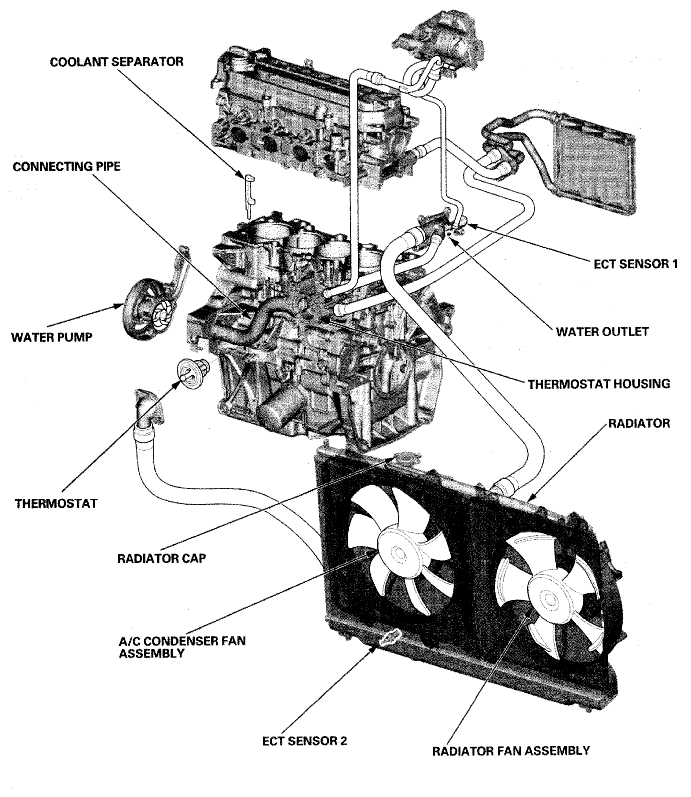

Fig 1: Identifying Cooling System Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Cooling System Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
