Steering Linkage and Gearbox Inspection
Steering Linkage and Gearbox Inspection

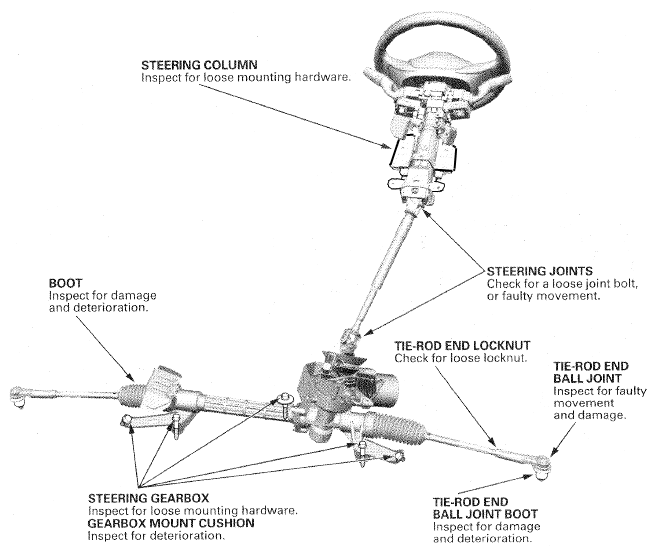

Fig 1: Identifying Steering Linkage And Gearbox
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
