Automatic Transmission
›
System Description
›
Electronic Control System
›
PCM A/T Control System Electrical Connections - Five-position Transmission
PCM A/T Control System Electrical Connections - Five-position Transmission

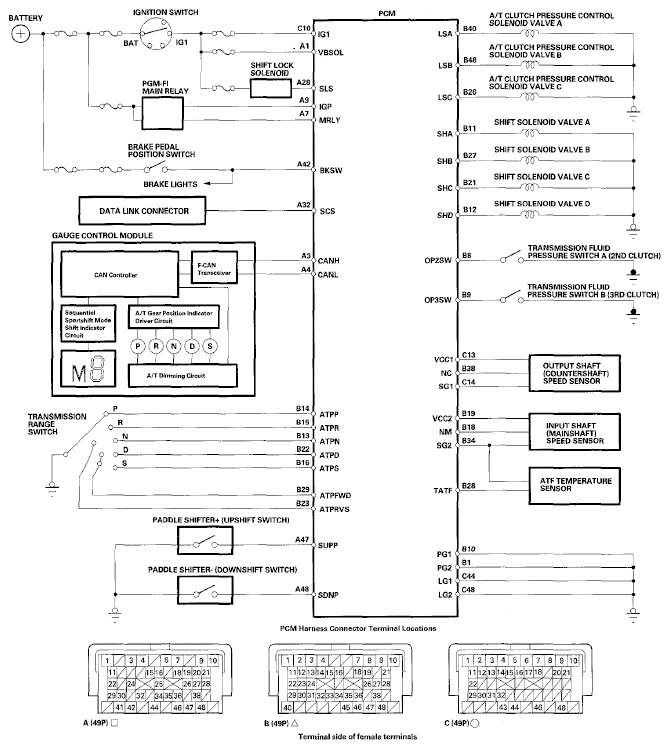

Fig 1: PCM A/T Control System Electrical Connections - Five-Position Transmission
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
