Honda
›
2013
›
Fit Base, Standard Trans
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Audio System
›
Circuit Diagram
›
Without Navigation
Without Navigation

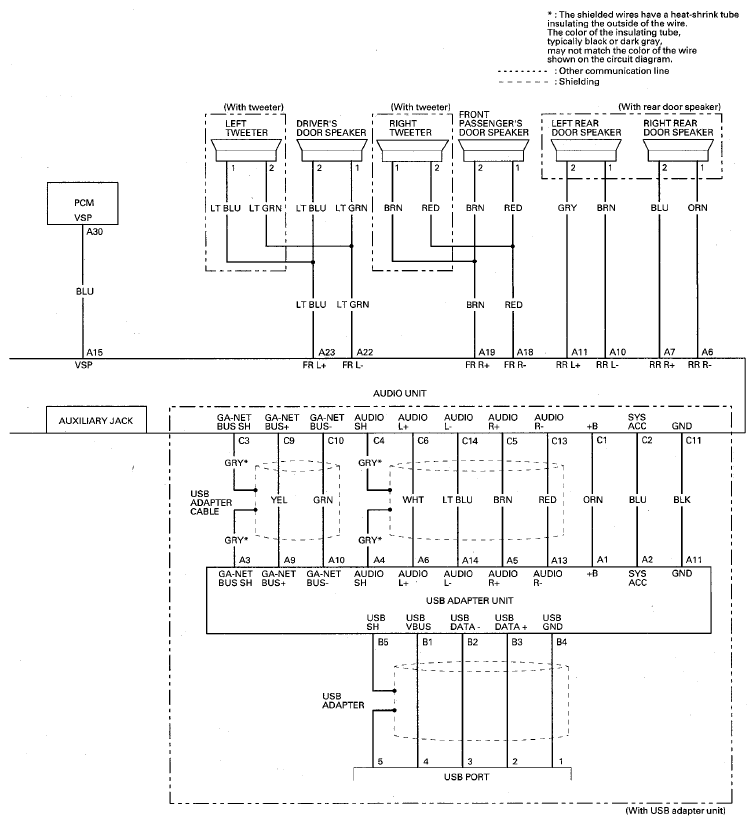

Fig 1: Audio System Circuit Diagram - Without Navigation (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

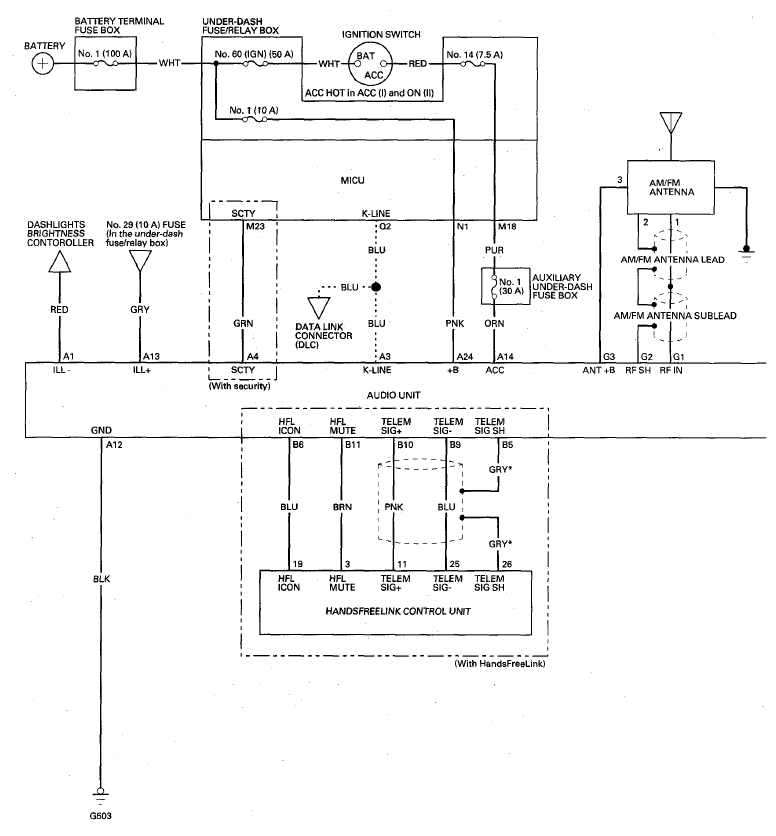

Fig 2: Audio System Circuit Diagram - Without Navigation (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
