Cooling Fan
›
Fan Controls
›
Circuit Diagram
Circuit Diagram

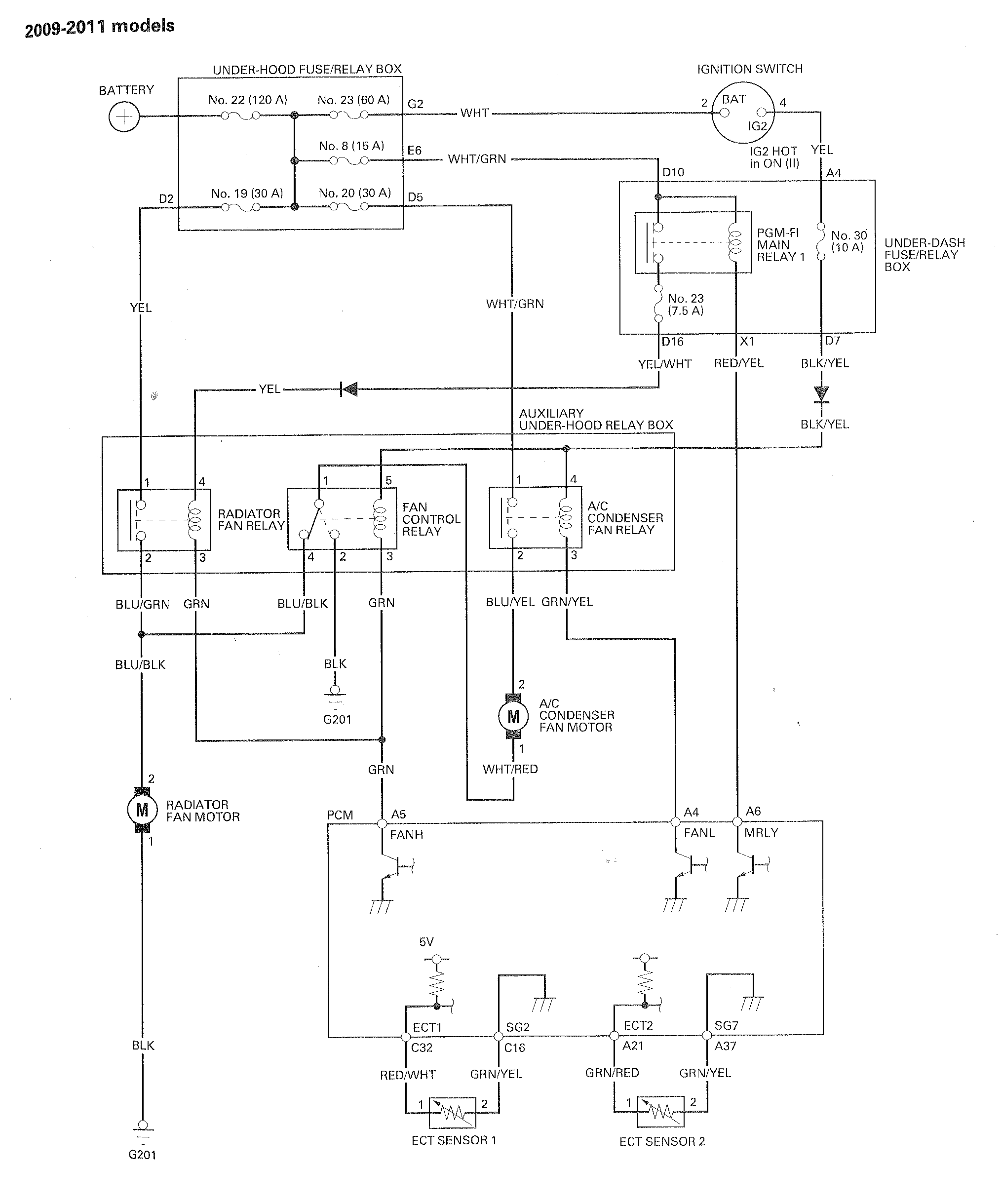

Fig 1: Fan Control - Circuit Diagram (2009-2011 Models) (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

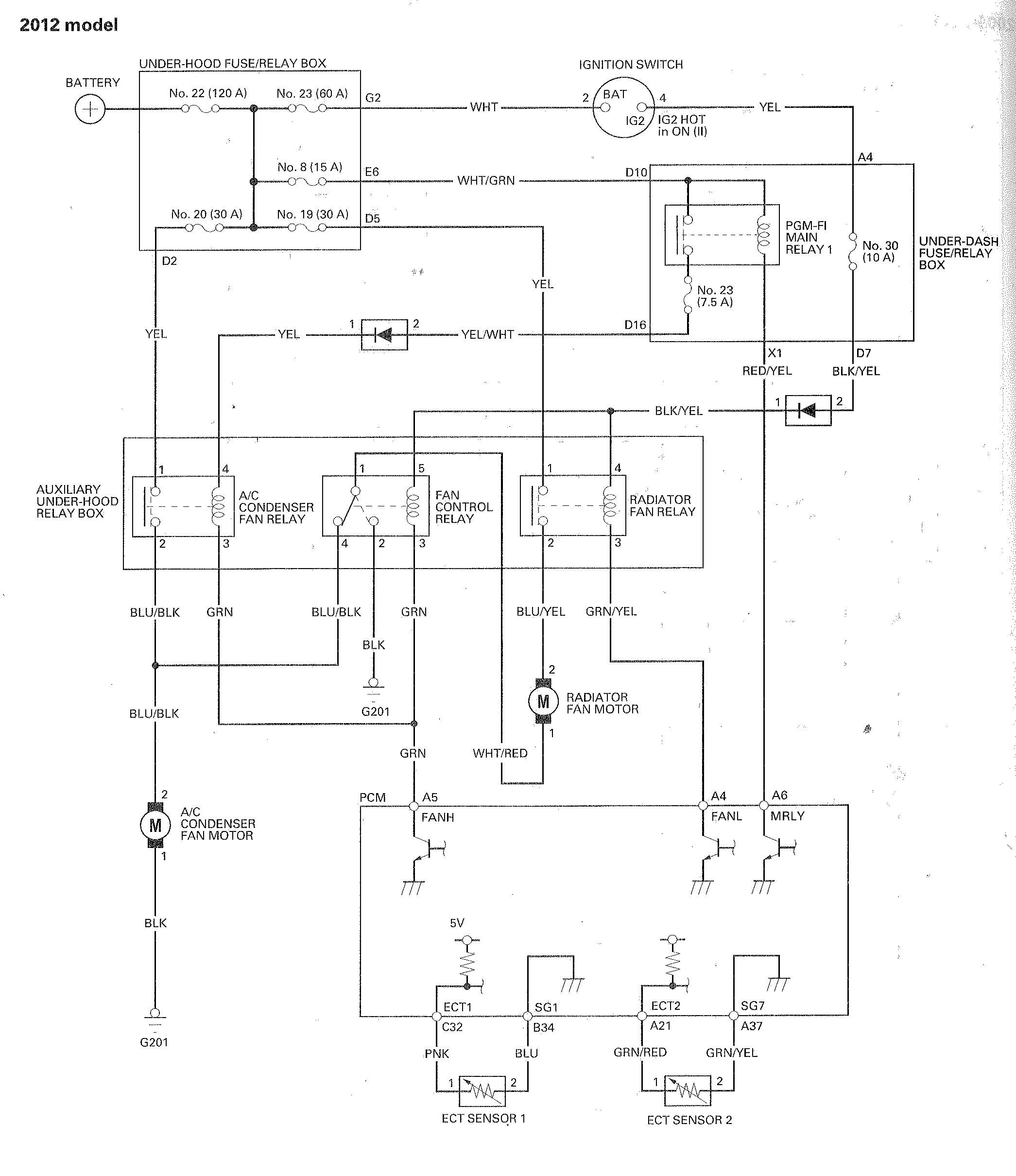

Fig 2: Fan Control - Circuit Diagram (2012 Model) (2 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
