Component Location Index
›
EVAP Control System Component Location Index (V6)
EVAP Control System Component Location Index (V6)

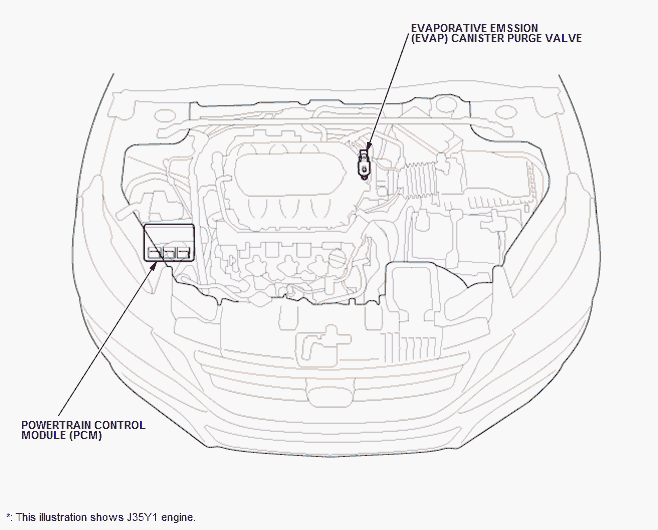

Courtesy of HONDA, U.S.A., INC.

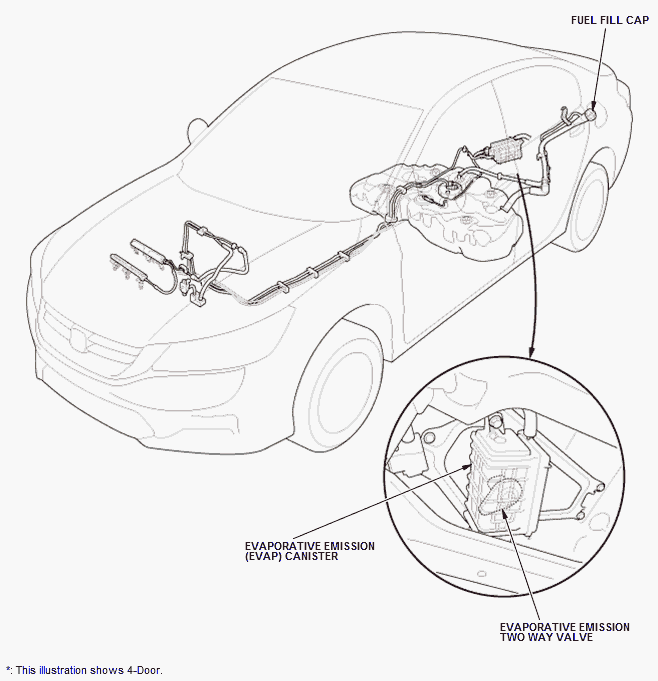

USA and Canada models
Courtesy of HONDA, U.S.A., INC.

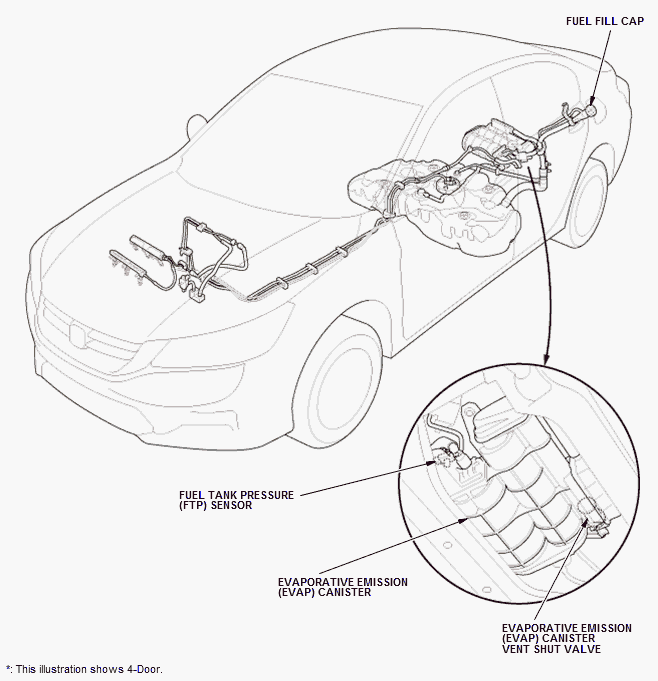

Mexico models
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
