Driving Position Memory System (DPMS) Component Location Index

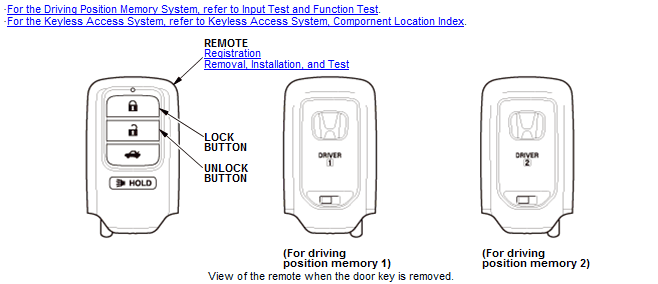

GHH260791

Courtesy of HONDA, U.S.A., INC.

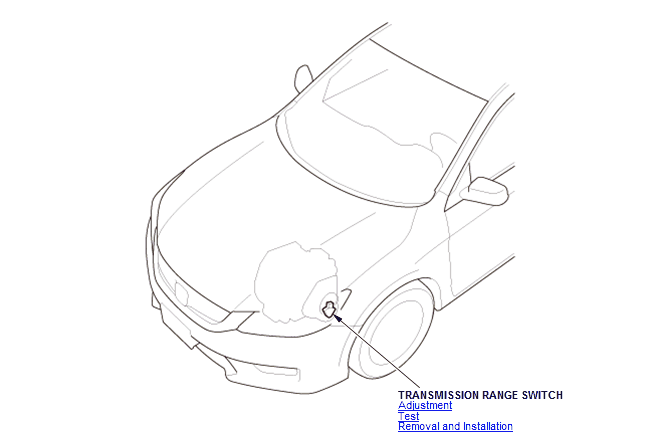

GHH260792

Courtesy of HONDA, U.S.A., INC.

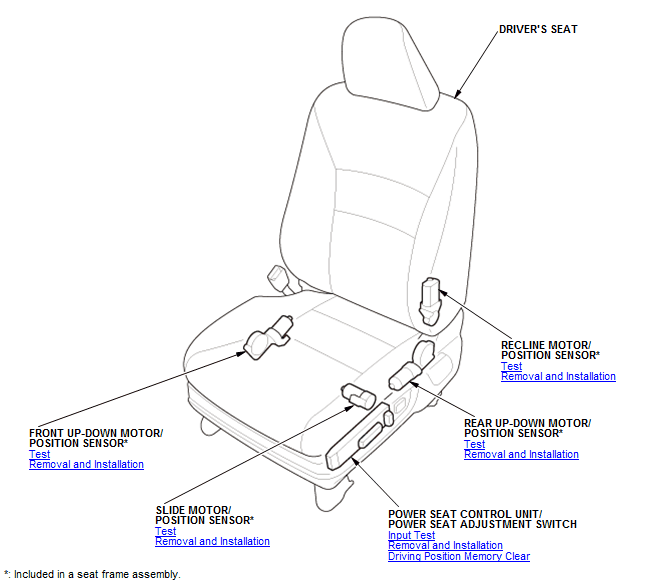

GHH260793

Courtesy of HONDA, U.S.A., INC.

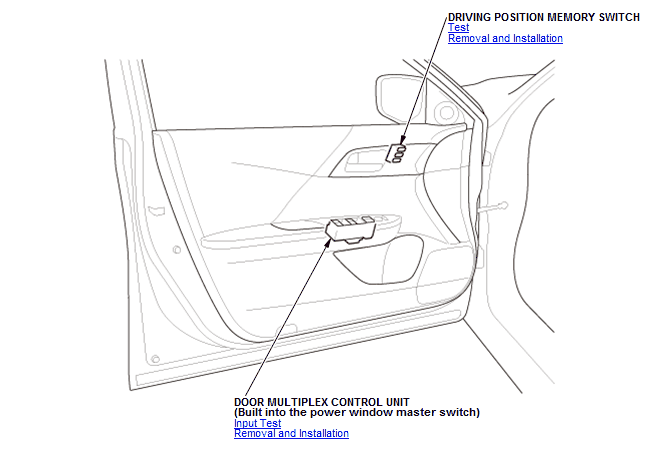

GHH260794

Courtesy of HONDA, U.S.A., INC.
