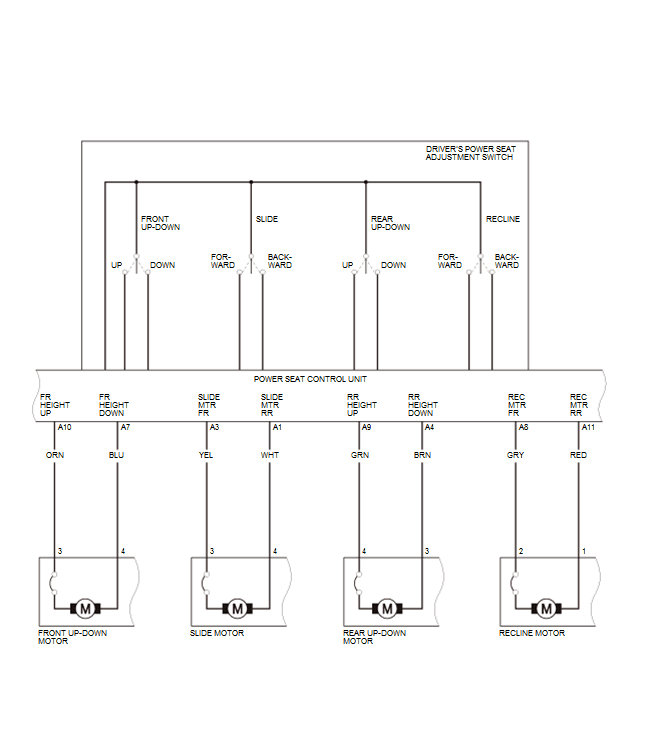

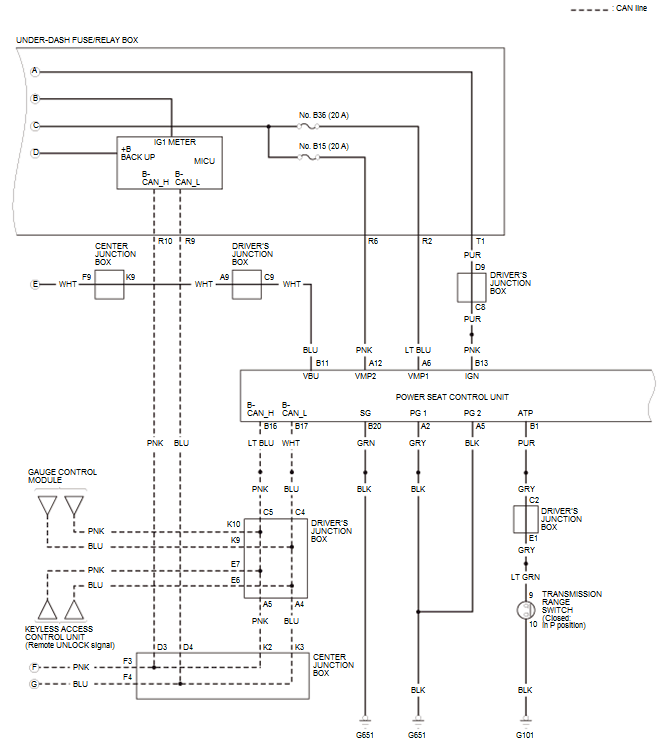

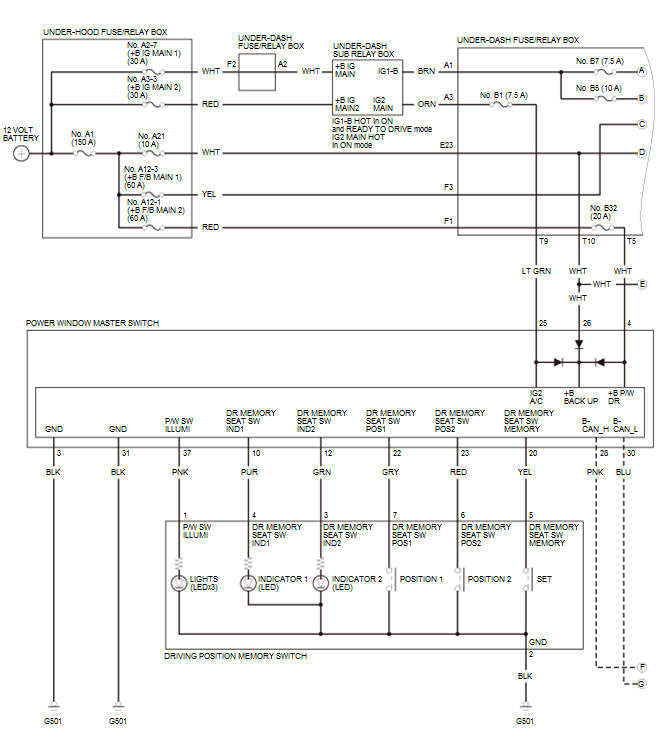

Driving Position Memory System (DPMS) Circuit Diagram
Driving Position Memory System (DPMS) Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
