Driver's Power Window Motor Test: Test

Motor Test

Front Door Switch Panel - Remove

Driver's Power Window Motor - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Remove the harness clips from the door panel as needed.

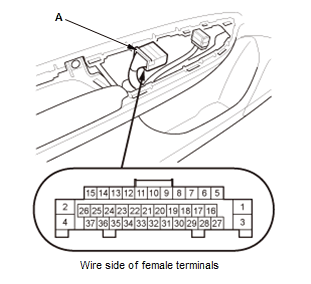

2. Test the motor in each direction by connecting battery power and ground to the connector (A) according to the table. When the motor stops running, disconnect battery power immediately.

If the motor does not run or fails to run smoothly, remove the driver's door regulator , then go to step 3.
If the motor runs smoothly, go to Hall IC Unit (Pulser) Test.

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

3. Test the driver's power window motor (A) by connecting battery power and ground according to the table. When the motor stops running, disconnect battery power immediately.

4. If the motor does not run or fails to run smoothly, the driver's power window motor is faulty; replace the driver's door regulator

.If the motor runs smoothly, replace the wire harnesses or adjust the driver's door glass .

Hall IC Unit (Pulser) Test

Front Door Panel - Remove

Hall IC Unit (Pulser) - Test

Courtesy of HONDA, U.S.A., INC.

1. Remove the front door plastic cover (A) as needed.

2. Disconnect the connector (B).

3. Check for continuity between the connector terminal No. 4 and body ground. There should be continuity.

If there is continuity, connect the motor connector, then go to step 4.
If there is no continuity, check for an open or high resistance in the BLK wire or poor ground (G501).

Courtesy of HONDA, U.S.A., INC.

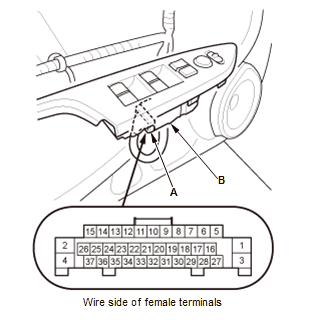

4. Connect the connector (A) to the power window master switch (B).

5. Turn the vehicle to the ON mode.

6. Do the power window master switch input test terminals No. 13, No. 17, and No. 19 - Refer to: Power Window Master Switch Input Test (2014), or Power Window Master Switch Input Test (2015 2017)

MTR SVCC circuit

MTR PLSA and MTR PLSB circuits

If the voltage is as specified, replace the power window master switch .
If the voltage is not specified, the Hall IC Unit (Pulser) is faulty; replace the driver's door regulator .

Power window master switch connector
No. 17	Body ground
No. 19	Body ground
No. 13	Body ground

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
