Rear Power Window Motor Test: Test

  1. Rear Door Switch Panel - Remove
  2. Rear Power Window Motor - Test
    GHH263884GHH263885Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH263884GHH263885Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

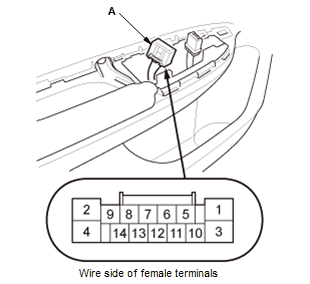

    		 1. Test the motor in each direction by connecting battery power and ground at the connector (A) according to the table. When the motor stops running, disconnect battery power immediately.If the motor does not run or fails to run smoothly, remove the rear door regulator , go to step 2.
    GHH263886GHH263887Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH263886GHH263887Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 2. Test the rear power window motor (A) by connecting battery power and ground according to the table. When the motor stops running, disconnect battery power immediately.

    3. If the motor does not run or fails to run smoothly, the rear power window motor is faulty; replace the rear door regulator

    .If the motor runs smoothly, replace the wire harness or adjust the rear door glass .
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
