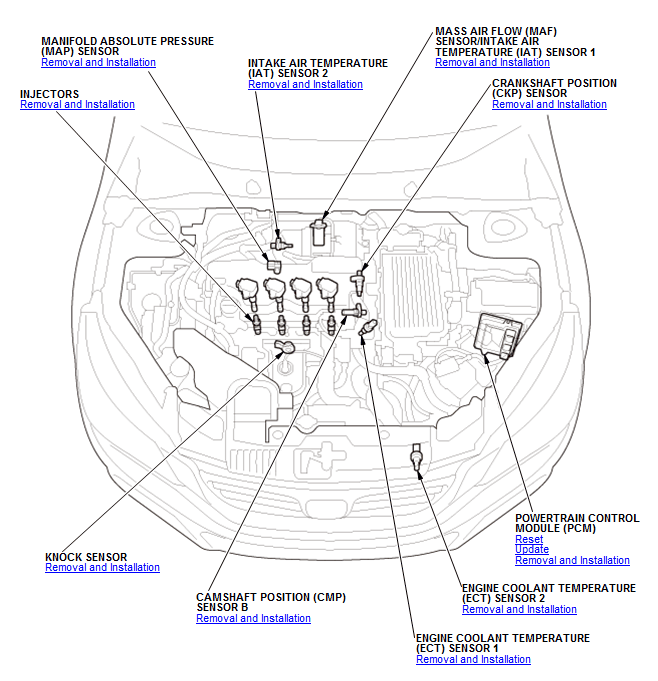

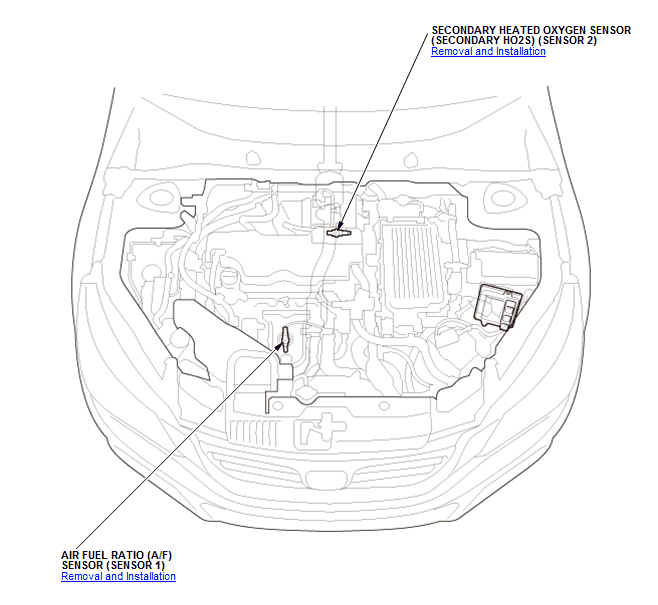

PGM-FI System Component Location Index (2014 2015)
PGM-FI System Component Location Index (2014 2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
