Rear Camera

If you selected the Rear Camera, select Tuning, then select the wide view, the normal view, or the top down view, and use the joystick to move the picture up/down or left/right. then press the CANCEL button to return the previous screen, and save the selection. Do not adjust the monitor position unless directed by a service bulletin. Default resets the display position to factory specifications.

Fig 1: Display - Monitor Adjustment Screen (Rear Camera)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

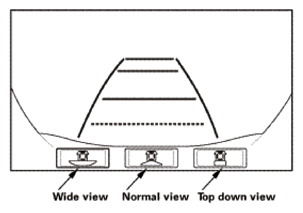

Fig 2: Display - Rear Camera View Screen (Wide, Top Down And Normal Views)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
