Ignition Key Light Test: Test

Ignition Key Light - Test
1. Disconnect the connector.
2. The LED should come on when power is connected to terminal No. 3 and ground is connected to terminal No. 2.
3. If the LED does not come on, replace the steering lock assembly.
4. Connect the connector.

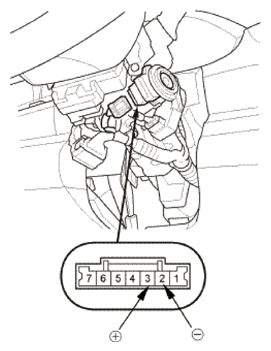

  Fig 1: Identifying Ignition Key Light Connector Terminals
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
