Alternator Overhaul: View

  1. Alternator Exploded View

    Exploded View

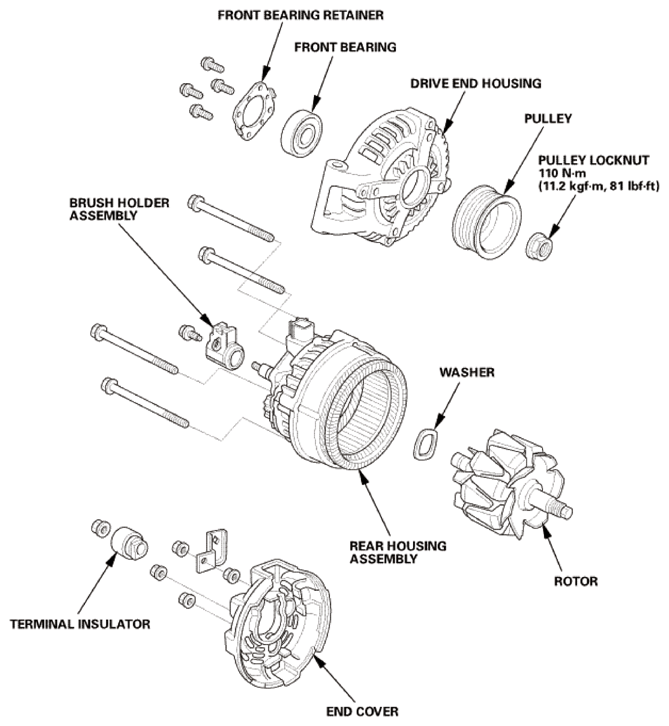

    Fig 1: Exploded View Of Alternator
    G08892557Courtesy of AMERICAN HONDA MOTOR CO., INC.
