DTC B1792: HandsFreeLink Control Module Error

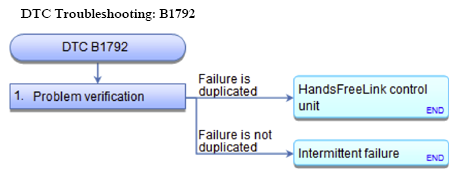

Fig 1: DTC Troubleshooting Chart (B1792)

G08873320

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

CHECK THE VEHICLE BATTERY CONDITION FIRST .
BEFORE YOU TROUBLESHOOT, MAKE SURE TO FOLLOW THE HOW TO TROUBLESHOOT THE HANDSFREELINK SYSTEM .
Check the connectors for poor connections or loose terminals.

Problem verification:
- 1. CHECK FOR HFL DTCS .
Is DTC B1792 indicated?

YES : Replace the HandsFreeLink control unit See HANDSFREELINK CONTROL UNIT REMOVAL AND INSTALLATION or HANDSFREELINK CONTROL UNIT UPDATE .

NO : Intermittent failure, the system is OK at this time.
