Motor Test

Remove the front passenger's power window switch See REAR POWER WINDOW SWITCH REMOVAL AND INSTALLATION or FRONT PASSENGER'S POWER WINDOW SWITCH REMOVAL AND INSTALLATION .
Test the motor in each direction by connecting battery power and ground to the front passenger's power window switch 10P connector according to the table.

Fig 1: Front Passenger's Power Window Motor Switch Condition Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Front Passenger's Power Window Switch 10P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4 .
REMOVE THE DOOR PANEL .
Disconnect the 2P connector from the front passenger's power window motor.

Check for continuity between the front passenger's power window switch 10P connector terminals and front passenger's power window motor 2P connector terminals as shown. There should be continuity.

Front passenger's power window switch 10P connector	Front passenger's power window motor 2P connector
10 (PNK)	1 (PNK)
8 (BLU)	2 (BLU)

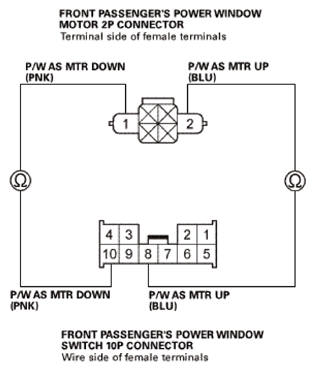

Fig 3: Checking Continuity Between Front Passenger's Power Window Switch 10P And 2P Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If there is no continuity, repair an open or high resistance in the wire(s). If the wire harness is OK, REPLACE THE FRONT PASSENGER'S POWER WINDOW MOTOR .
