Front Passenger's Power Window Switch Test: Installation

  1. Front Door Power Window Switch Panel - Passenger's Side
    1. Connect the connector (A), then install the power window switch panel (B). Make sure the clips (C) and the hooks (D) snap into place securely.

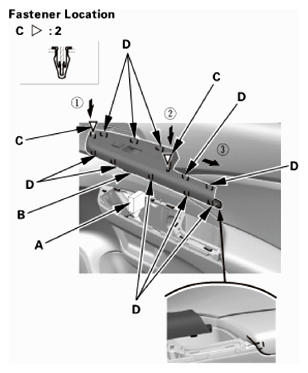

      Fig 1: Installing Power Window Switch Panel
      G08881540Courtesy of AMERICAN HONDA MOTOR CO., INC.
