VSA Off Switch Removal, Installation, and Test: Test

VSA Off Switch - Test
1. On the switch side, check for continuity between the connector terminal in each switch position according to the table.
  - If the switch does not work as described in the table, replace the switch.
  - If the switch tests OK, go to step 2.

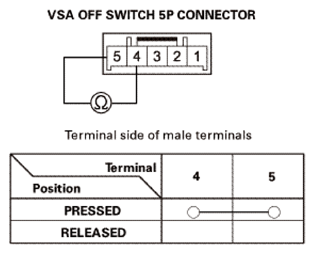

    Fig 1: VSA Off Switch Continuity Reference Chart
    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Fig 2: Checking Continuity Between Connector Terminals No. 1 And No. 2
    Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. On the switch side, check for continuity between connector terminals No. 1 and No. 2. There should be continuity at all times.
  - If the continuity is not as specified, remove the cover, and replace the bulb.
