Steering Wheel Disassembly and Reassembly
›
Exploded View
Exploded View
STEERING WHEEL EXPLODED VIEW
EXPLODED VIEW

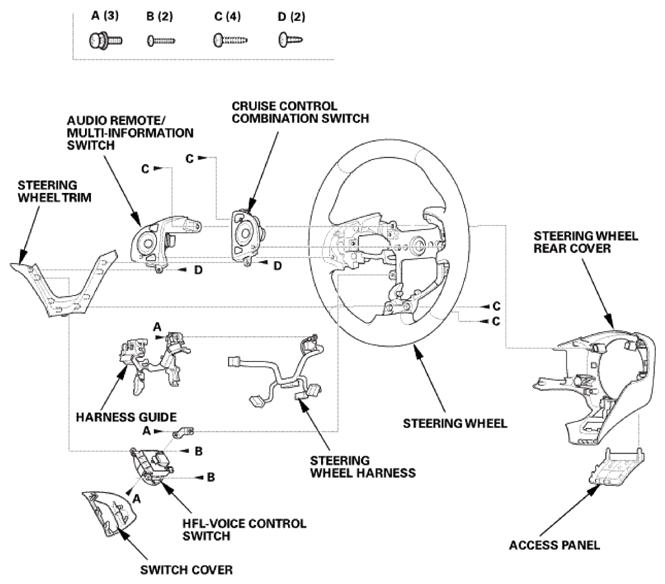

Fig 1: Exploded View Of Steering Wheel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
