A/T Interlock System - Shift Lock System Circuit Troubleshooting
›
Notes
A/T Interlock System - Shift Lock System Circuit Troubleshooting: Notes

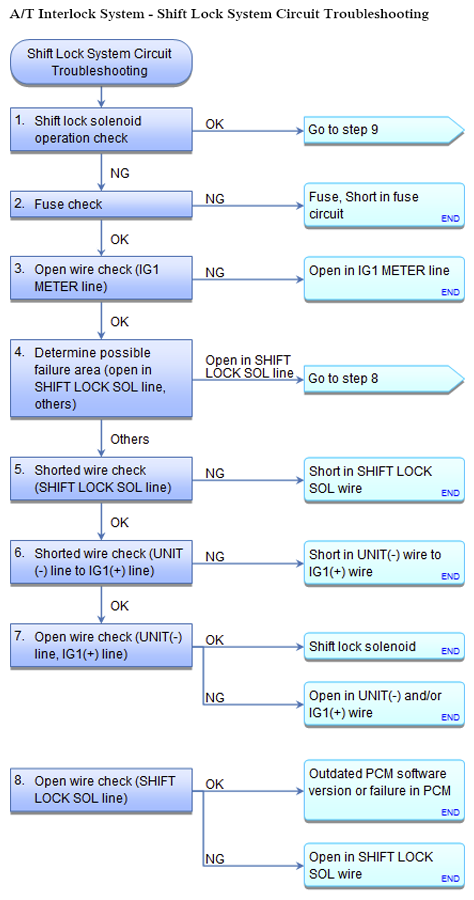

Fig 1: A/T Interlock System - Shift Lock System Circuit Troubleshooting Flow Chart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

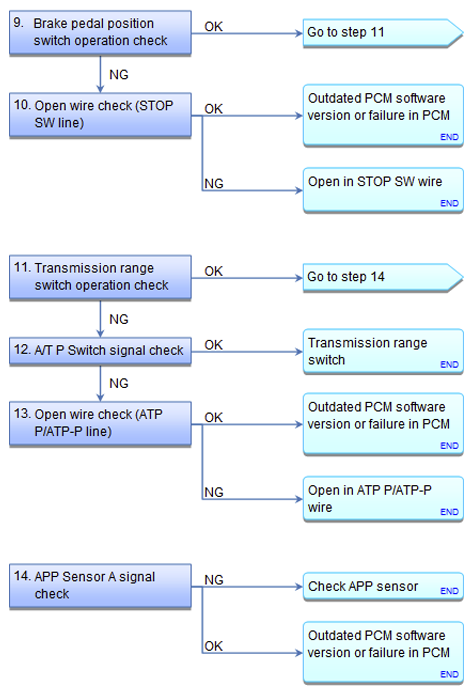

Fig 2: A/T Interlock System - Shift Lock System Circuit Troubleshooting Flow Chart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
