Transmission Range Switch Test: Test

  1. Transmission Range Switch Subharness - Continuity Test

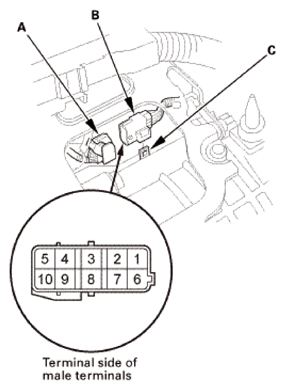

    1. Disconnect the connector (A), then remove the transmission range switch subharness 10P connector (B) from its bracket (C).
      Fig 1: Locating Connector, Transmission Range Switch Subharness 10P Connector And Bracket
      G08879411Courtesy of AMERICAN HONDA MOTOR CO., INC.
    2. Check for continuity between terminals at the transmission range switch subharness 10P connector. There should be continuity between the terminals in the table for each shift lever position.
      • The transmission range switch test is finished if the test results are OK. Reconnect the connector.
      • If there is no continuity between any terminals, go to the next procedure.

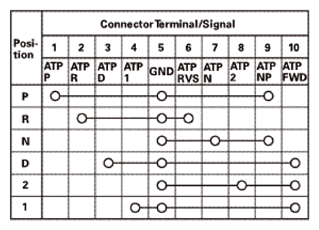

        Fig 2: Transmission Range Switch Subharness 10P Connector Terminals Continuity Chart
        G08879412Courtesy of AMERICAN HONDA MOTOR CO., INC.


  1. Transmission Range Switch - Continuity Test
    1. Disconnect the connector (A).

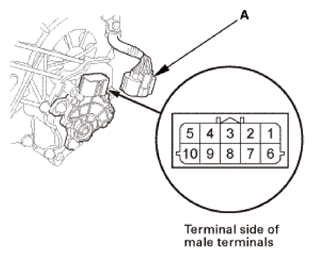

      Fig 1: Locating Transmission Range Switch Connector
      G08879414Courtesy of AMERICAN HONDA MOTOR CO., INC.
    2. Check for continuity between terminals at the transmission range switch 10P connector. There should be continuity between the terminals in the table for each shift lever position.
      • If the transmission range switch test is OK, replace the faulty transmission range switch subharness.
      • If there is no continuity between any terminals, go to the next step and check the selector control shaft.

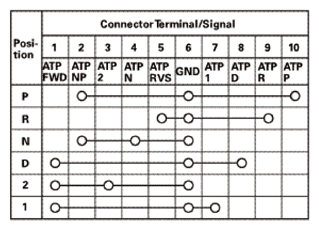

        Fig 2: Transmission Range Switch 10P Connector Terminals Continuity Chart
        G08879415Courtesy of AMERICAN HONDA MOTOR CO., INC.
    3. Remove the transmission range switch (A).
      Fig 3: Locating Transmission Range Switch
      G08879416Courtesy of AMERICAN HONDA MOTOR CO., INC.

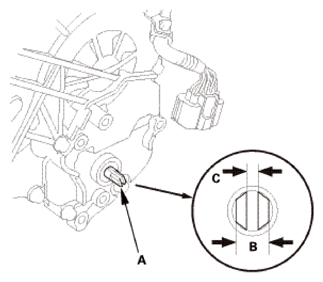

    4. Check the end of the selector control shaft (A).

      Selector Control Shaft Specification

      Width (B): 6.1 - 6.2 mm (0.240 - 0.244 in)

      End Gap (C): 1.8 - 2.0 mm (0.071 - 0.079 in)

      • If the measurement at the end of the selector control shaft end is within the specification, replace the transmission range switch.
      • If the measurement is out of the specification, repair the selector control shaft end, and recheck the transmission range switch continuity.
        Fig 4: Locating Selector Control Shaft
        G08879417Courtesy of AMERICAN HONDA MOTOR CO., INC.
