Intermediate Shaft Disassembly and Reassembly
›
Exploded View
Exploded View
Intermediate Shaft Exploded View
Exploded View

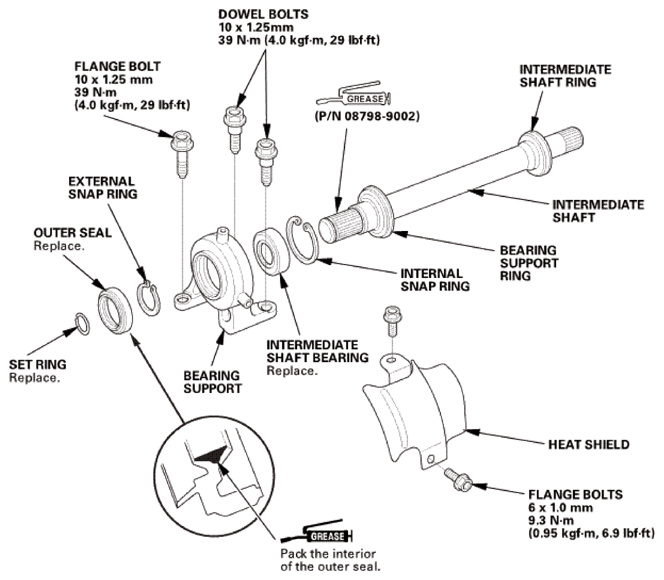

Fig 1: Exploded View Of Intermediate Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
