Idle Control System (4-CYL)
›
Component Location Index
Component Location Index

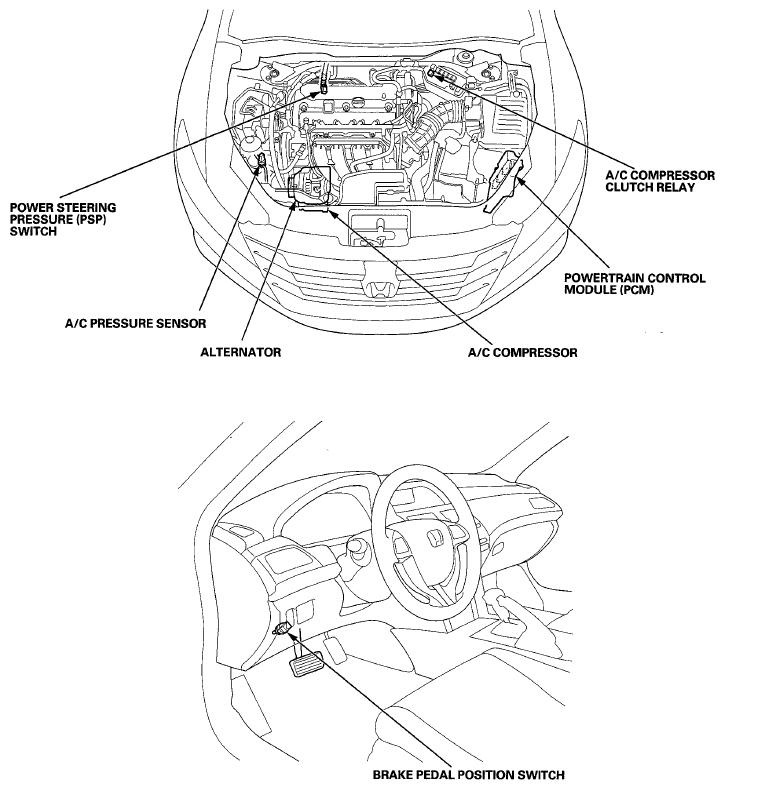

Fig 1: Identifying Idle Control System Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
