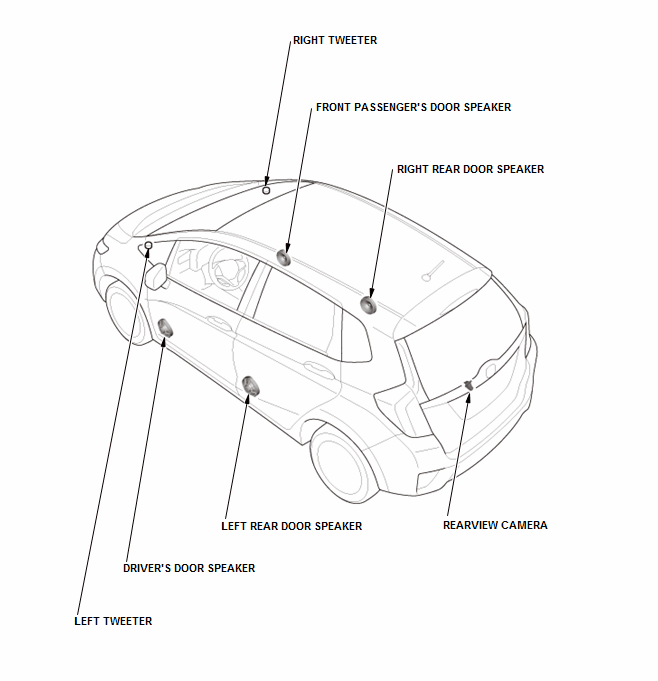

Audio System Component Location Index
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of HONDA, U.S.A., INC.
|

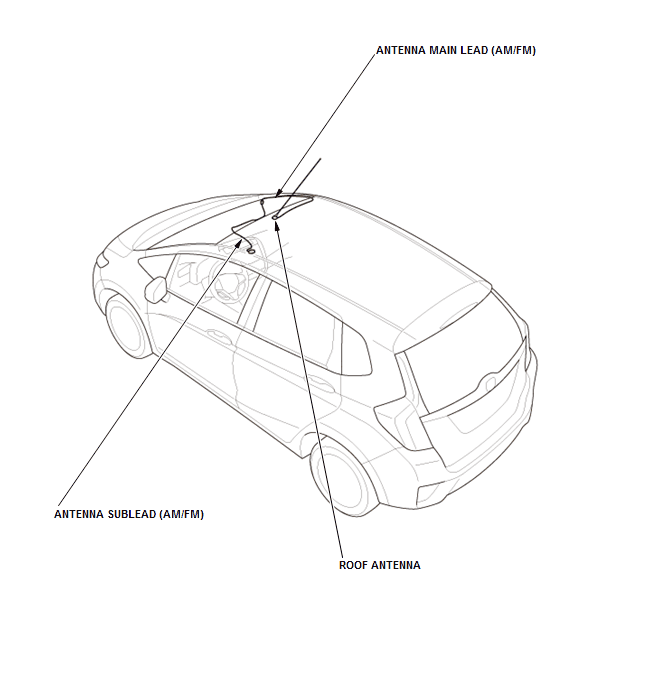

With Front Installation Type Roof Antenna
 Courtesy of HONDA, U.S.A., INC.
|

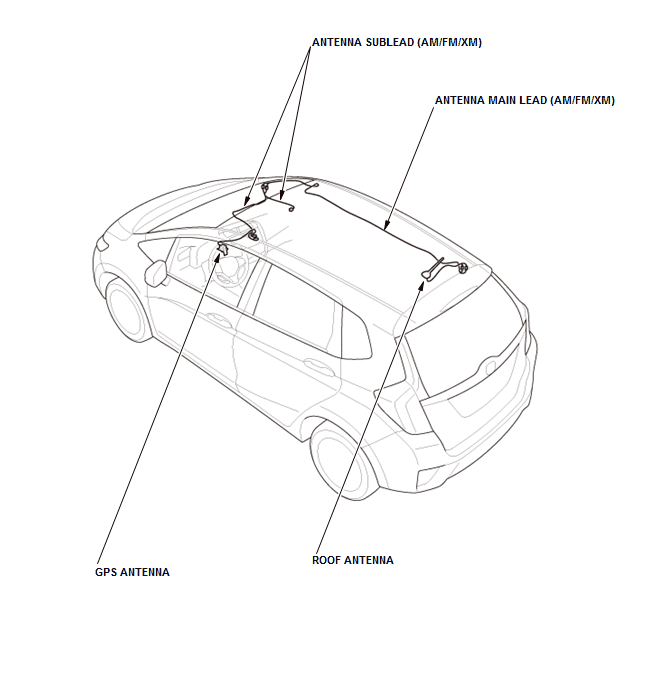

With Rear Installation Type Roof Antenna
 Courtesy of HONDA, U.S.A., INC.
|

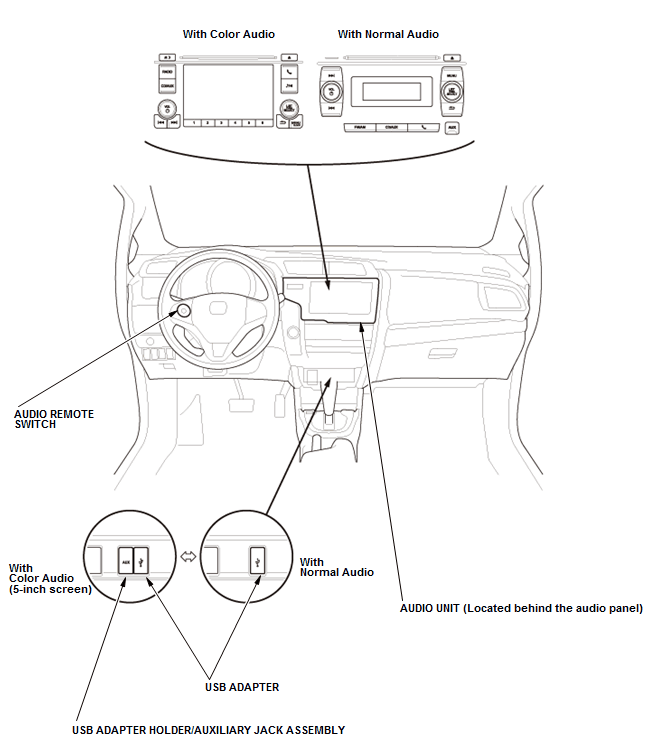

Without Display Audio (7-inch screen)
 Courtesy of HONDA, U.S.A., INC.
|

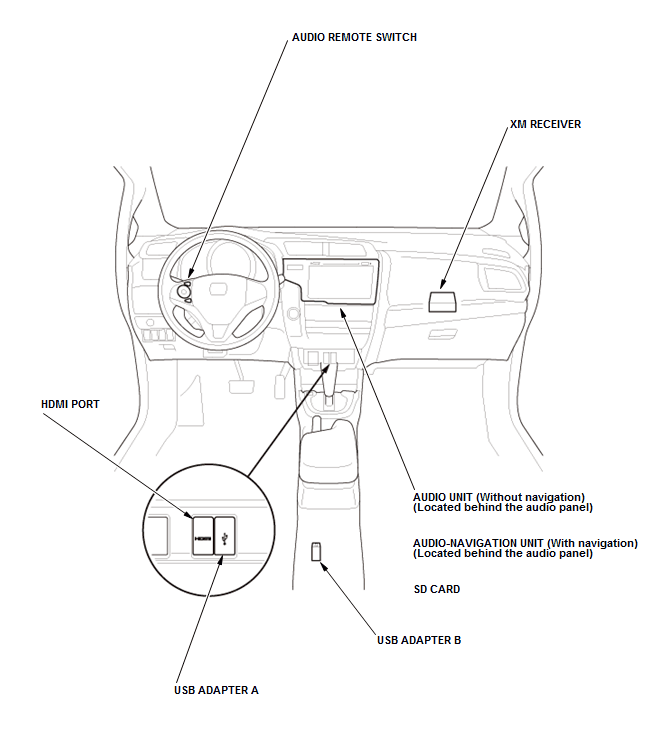

With Display Audio (7-inch screen)
 Courtesy of HONDA, U.S.A., INC.
|
