Ceiling Light Test/Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ceiling light switch OFF.
  2. Carefully pry the lens (A) off with a small screwdriver.

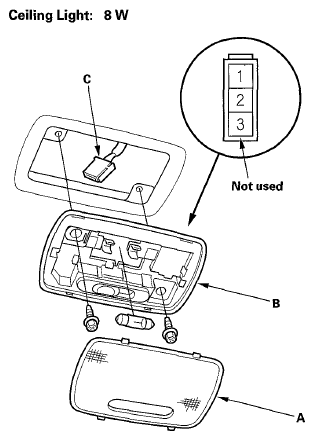

    Fig 1: Identifying Ceiling Light & Screws
    G05960044Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws, then remove the ceiling light (B).
  4. Disconnect the 3P connector (C) from the ceiling light.
  5. Check for continuity between the terminals.
    • There should be continuity between terminals No. 1 and No. 2 with the switch in the MIDDLE (DOOR) position.
    • There should be continuity between terminals No. 2 and body ground with the switch in the ON position.
    • There should be no continuity between terminals No. 1 and No. 2, and between terminals No. 2 and body ground with the switch in the OFF position.
  6. If the continuity is not as specified, check the bulb. If the bulb is OK, replace the ceiling light.
  7. Install the light in the reverse order of removal.
