Console Box Light Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dashboard center lower cover.
  2. Twist the socket (A) to remove it from the dashboard center lower cover (B).

    Console Box Light Bulb: 1.4 W

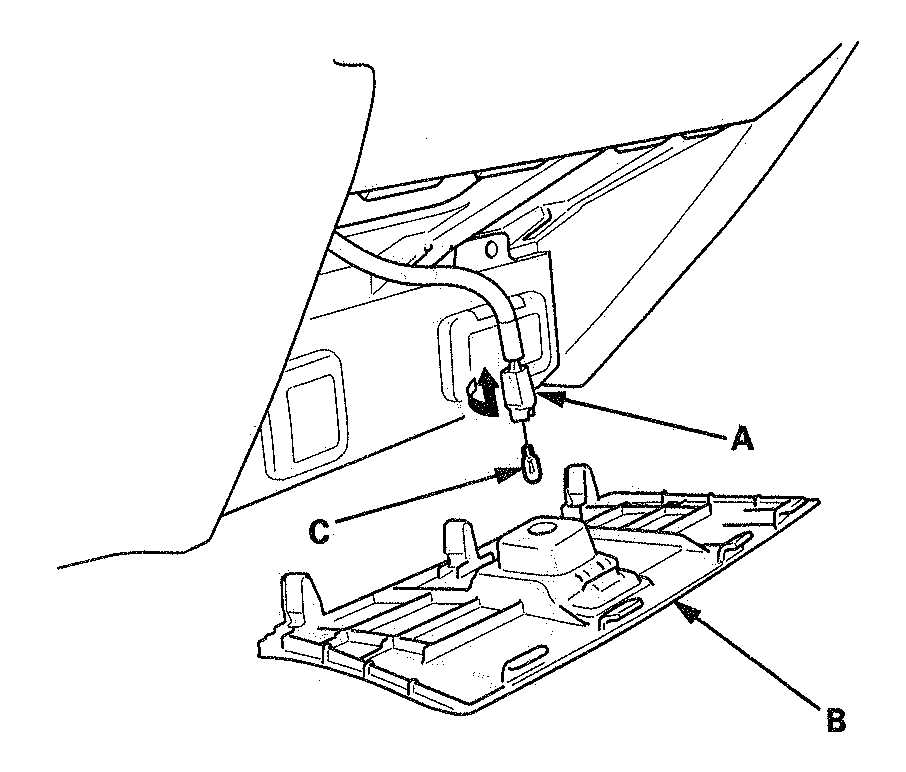

    Fig 1: Identifying Console Box Light
    G00509555Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bulb (C) from the socket
  4. Check for continuity between terminals No. 1 (+) and No. 2 (-). There should be continuity. If there is no continuity, check the bulb. If the bulb is OK, replace the cargo area light assembly.
  5. Install the light in the reverse order of removal.
