Master Cylinder Inspection

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the master cylinder (see MASTER CYLINDER REPLACEMENT ).
Inspect and note these items:
- Before reassembling, check that all parts are free of dirt and other foreign particles.
- Do not try to disassemble the master cylinder assembly. Replace the master cylinder assembly with a new part, if necessary.
- Do not allow dirt or foreign matter to contaminate the brake fluid.

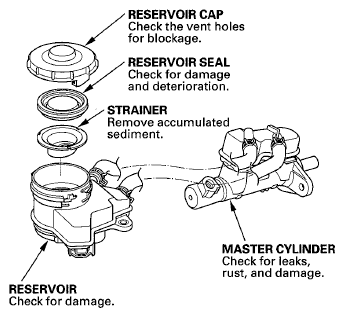

  Fig 1: Identifying Reservoir Cap, Seal, Strainer, Reservoir & Master Cylinder
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the master cylinder (see MASTER CYLINDER REPLACEMENT ).
