Washer Tube Replacement

Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
Remove the washer nozzles and the clips, then remove the tubes.

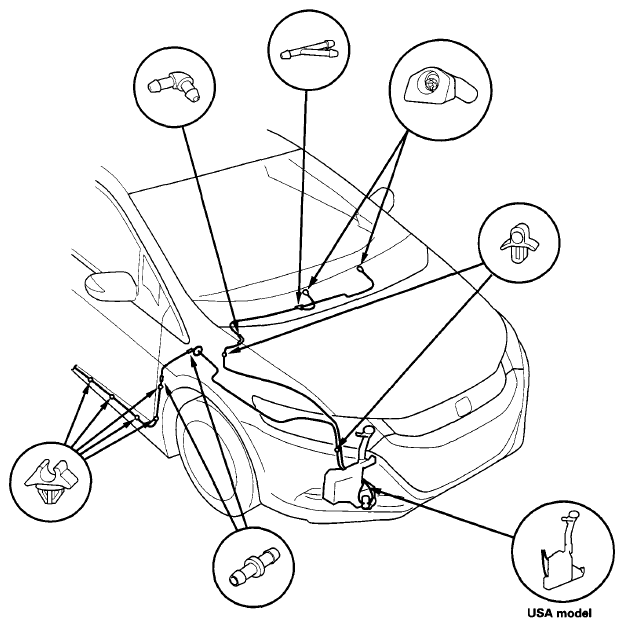

Fig 1: Identifying Washer Nozzles, Clips And Tubes (Front)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

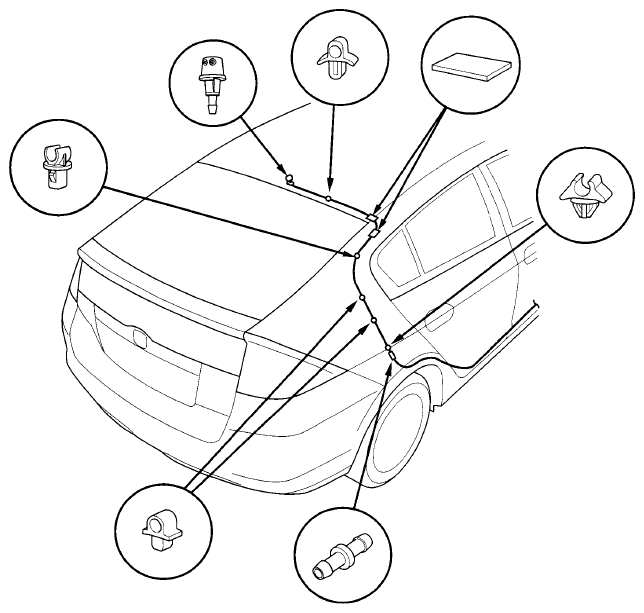

Fig 2: Identifying Washer Nozzles, Clips And Tubes (Rear)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
