Rocker Arm Assembly Removal

Remove the camshaft sprocket (see CAMSHAFT SPROCKET REMOVAL ).
Loosen the rocker arm adjusting screws (A).

Fig 1: Identifying Rocker Arm Adjusting Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the camshaft holder bolts. To prevent damaging the camshaft, loosen the bolts in sequence two turns at a time.

Fig 2: Loosening Sequence Of Camshaft Holder Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rocker arm assembly.

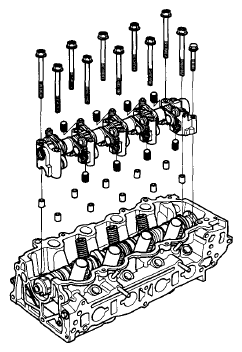

Fig 3: Identifying Rocker Arm Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
