Auto Stop Indicator

When auto idle stop is operating, the auto stop indicator blinks, If the driver's door is opened during auto idle stop, the auto stop indicator blinks and a warning buzzer sounds to remind the driver that auto idle stop is in operation.

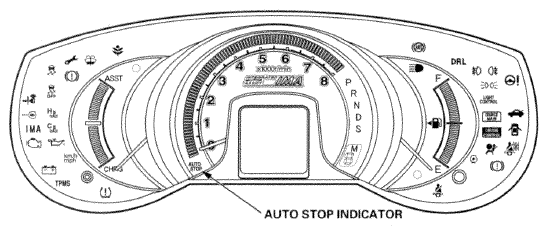

Fig 1: Display Auto Stop Indicator
G08092681Courtesy of AMERICAN HONDA MOTOR CO., INC.
