Junction Board: Notes

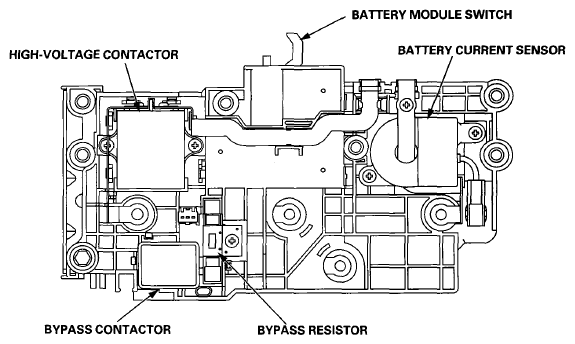

The junction board is mounted on the battery module, and it distributes high voltage energy within the IMA system. The junction board consists of a high-voltage contactor, a bypass contactor, a bypass resistor, a battery current sensor, a fuse and a battery module switch.
