Exploded View

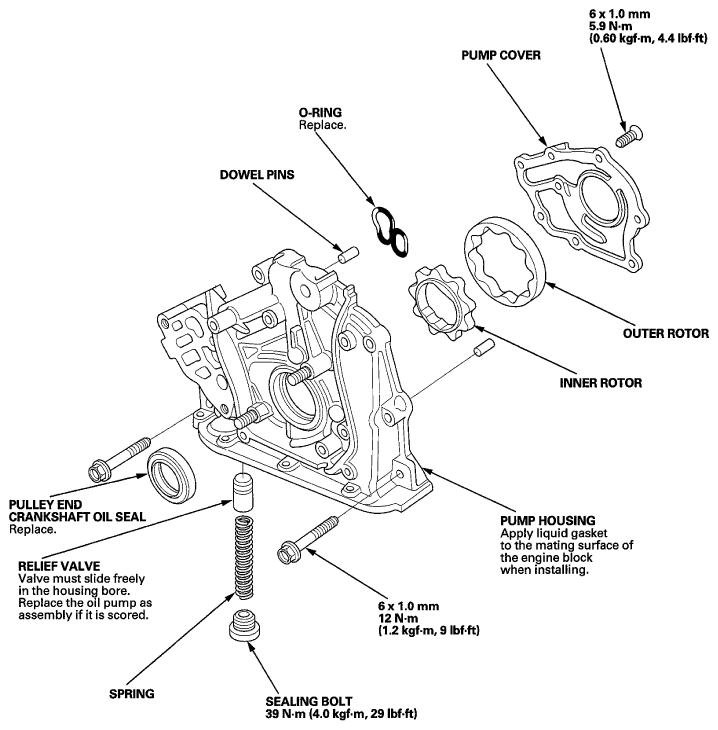

Fig 1: Exploded View Of Oil Pump

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Oil Seal Driver, 64 mm 07OAD-RCAA100
• Engine Support Hanger, A and Reds AAR-T1256

  *: Available through the Honda Tool and Equipment Program 888-424-6857
