Rocker Arm Oil Pressure Sensor Replacement

  1. Disconnect the rocker arm oil pressure sensor connector (A), then remove the rocker arm oil pressure sensor (B).

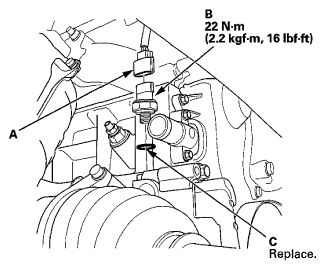

    Fig 1: Identifying Rocker Arm Oil Pressure Sensor Connector, Rocker Arm Oil Pressure Sensor And O-Ring
    G06966506Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove all the old liquid gasket from the rocker arm oil pressure senor mounting hole.
  3. Clean and dry the rocker arm oil pressure sensor mounting hole.
  4. Apply liquid gasket (P/N 08717-0004, 08718-0003, 08718-0004, or 08718-0009) to the rocker arm oil pressure sensor threads. Install the component within 5 minutes of applying the liquid gasket.
    NOTE:
    • Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the rocker arm oil pressure sensor.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.
  5. Install the new rocker arm oil pressure sensor with a new O-ring (C).
  6. Connect the rocker arm oil pressure sensor connector.
