EVAP Canister Purge Valve Replacement

Disconnect the hoses (A) and the EVAP canister purge valve 2P connector (B).

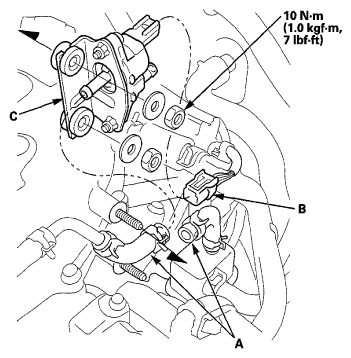

Fig 1: Hoses And EVAP Canister Purge Valve 2P Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister purge valve assembly (C).
Remove the EVAP canister purge valve (A) from the bracket (B).

Fig 2: EVAP Canister Purge Valve, Bracket And Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
