Engine Compartment 5
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

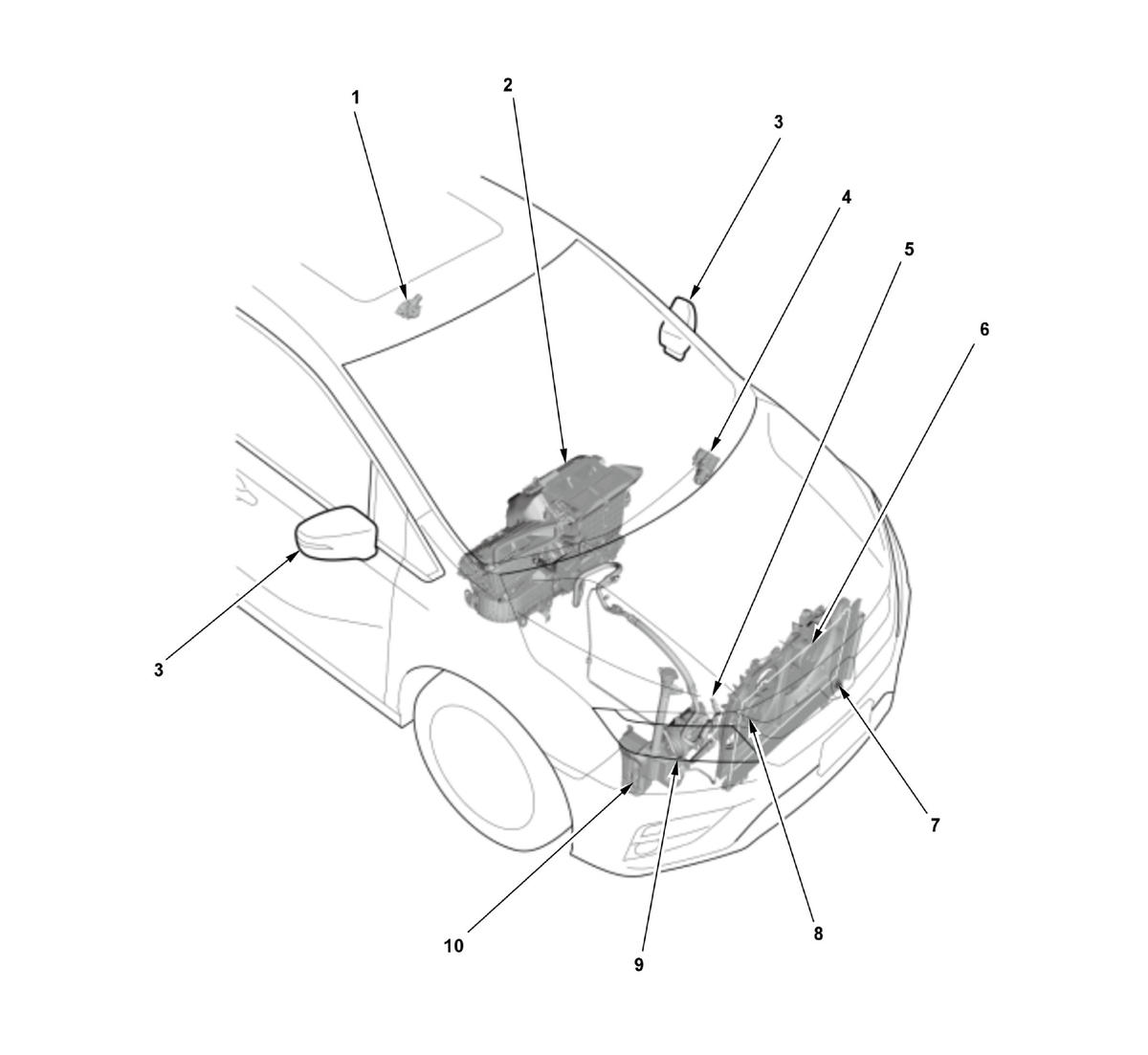

Engine Compartment 5 Legend
| No. | Component | Related System |
|---|---|---|
| 1 | Moonroof Motor-Control Unit | Moonroof |
| 2 | HVAC Unit | Climate Control |
| 3 | Power Mirror Actuator/Retract Actuator/Position Sensor/Mirror Defogger | |
| 4 | Windshield Wiper Control Unit/Motor | Wipers/Washers |
| 5 | A/C Pressure Sensor | Climate Control |
| 6 | Radiator Fan Shroud Assembly
|
|
| 7 | Outside Air Temperature Sensor | Climate Control |
| 8 | A/C Condenser Fan Shroud Assembly
|
|
| 9 | A/C Compressor | Climate Control |
| 10 | Windshield/Rear Window Washer Motor | Wipers/Washers |
