Speaker Check Mode

NOTE:
  • Not all self-diagnostic functions appear on all models.
  • There may be other self-diagnostic functions that are for factory use only.
  1. Turn the ignition switch to ON (II).
  2. Make sure the audio system is turned off.
  3. Press and hold the preset No. 1 and No. 3 buttons.
  4. While holding the buttons, push the VOLUME/POWER knob.
  5. Release the buttons, and the speaker check mode begins.
    Fig 1: Identifying Speaker Check Mode (With Navigation And Rear Entertainment)
    G08090694Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 2: Identifying Speaker Check Mode (Without Navigation And With Rear Entertainment)
    G08090695Courtesy of AMERICAN HONDA MOTOR CO., INC.

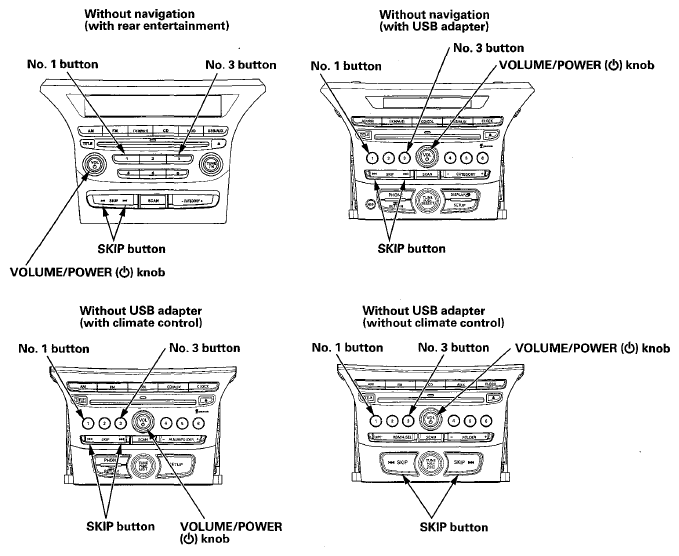

    Fig 3: Identifying Speaker Check Mode (Without Navigation And USB Adapter)
    G08090696Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Display Specifications

    With navigation and rear entertainment

    (→→ ) is pressed: (1)→(2)→(3)→(4)→(5)→(6)→(7)→(8)→(9)→(10)→(11)

    (←← ) is pressed: (1)→(11)→(10)→(9)→(8)→(7)→(6)→(5)→(4)→(3)→(2)

    With navigation, without rear entertainment or without navigation

    (→→ ) is pressed: (1)→(2)→(3)→(4)→(5)→(6)→(7)

    (←← ) is pressed: (1)→(7)→(6)→(5)→(4)→(3)→(2)

    WITH NAVIGATION AND REAR ENTERTAINMENT

      Speaker Displayed Segments Remarks
    (1) Driver's door speaker SPKR FR-L You should hear a tone corresponding to the speaker
    (2) Center speaker SPKR CENTER You should hear a tone corresponding to the speaker
    (3) Front Passenger's door speaker SPKR FR-R You should hear a tone corresponding to the speaker
    (4) Right rear door speaker SPKR RR-R You should hear a tone corresponding to the speaker
    (5) Right satellite speaker SPKR SURROUND-R You should hear a tone corresponding to the speaker
    (6) Subwoofer SPKR SUBWOOFER You should hear a tone corresponding to the speaker
    (7) Left satellite speaker SPKR SURROUND-L You should hear a tone corresponding to the speaker
    (8) Left rear door speaker SPKR RR-L You should hear a tone corresponding to the speaker
    (9) Left tweeter SPKR FRTW-L You should hear a tone corresponding to the speaker
    (10) Right tweeter SPKR FRTW-R You should hear a tone corresponding to the speaker
    (11) All Speakers SPKR ALL
    • You should hear a tone corresponding to the speaker
    • The subwoofer does not sound atone
    WITH NAVIGATION, WITHOUT REAR ENTERTAINMENT OR WITHOUT NAVIGATION

      Speaker Displayed Segments Remarks
    (1) Driver's door speaker and left tweeter SPKR FR-L You should hear a tone corresponding to the speaker
    (2) Center speaker SPKR CENTER You should hear a tone corresponding to the speaker
    (3) Front Passenger's door speaker and right tweeter SPKR FR-R You should hear a tone corresponding to the speaker
    (4) Right rear door speaker SPKR RR-R You should hear a tone corresponding to the speaker
    (5) Subwoofer SPKR SUBWOOFER You should hear a tone corresponding to the speaker
    (6) Left rear door speaker SPKR RR-L You should hear a tone corresponding to the speaker
    (7) All Speakers SPKR ALL
    • You should hear a tone corresponding to the speaker
    • The subwoofer does not sound a tone
  6. The speaker check mode ends when you turn the audio unit off or turn the ignition switch to LOCK (0).
