System Reset Mode (without navigation)
NOTE:
The audio-navigation unit (with navigation) is not supported with this diagnosis.
Using the System Reset Mode erases all the music saved in the CD-L and resets the following settings:
- AM/FM preset memories
- Audio settings (volume, tone control, audio dimension, subwoofer, and SVC)
- RES settings (Language, dynamic range, parental level, parental password, and DVD auto play
- Menu language
- Clock adjustment (12/24H setting)
- HFL security code
- Turn the ignition switch to ON (II).
- Make sure the audio system is turned off.

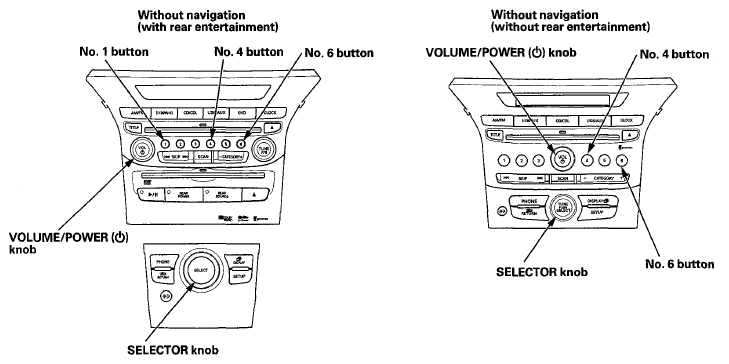

- Press and hold the preset No. 1, No. 4, No. 6, and the SELECTOR knob for 5 seconds, and the system reset mode begins.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Display Message State Remarks SYS RST system reset mode While this mode, the speaker beeps for 3 seconds - When the system reset mode ends, the audio system automatically returns to its normal display setting.
