GPS Antenna Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

Remove the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ) and the center lower pocket (see DASHBOARD CENTER LOWER COVER REMOVAL/INSTALLATION ).
Disconnect the connector (A), then remove the wire harness clips (B).

Fig 1: Identifying Wire Harness Clips And Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

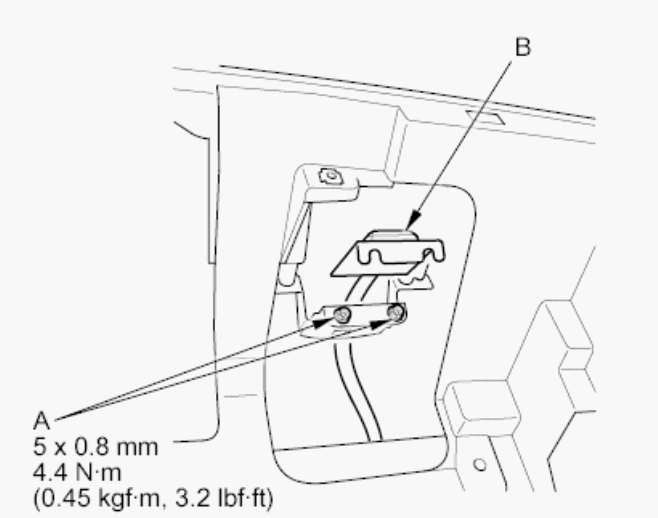

Loosen the bolts (A) and the GPS antenna (B).

Fig 2: Identifying GPS Antenna And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the GPS antenna in the reverse order of removal.
