System Description
›
Overview
›
Block Diagram
›
System Diagram
›
With navigation
With navigation

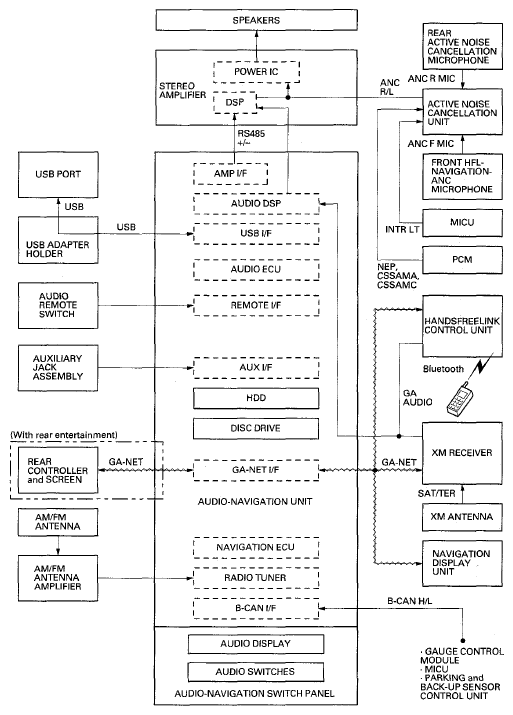

Fig 1: Audio System - Block Diagram (With Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
