Drive Unit Replacement

Remove the left D-pillar trim (see D-PILLAR TRIM ).
Disconnect the 2P and 8P connectors (A) from the drive unit (B).

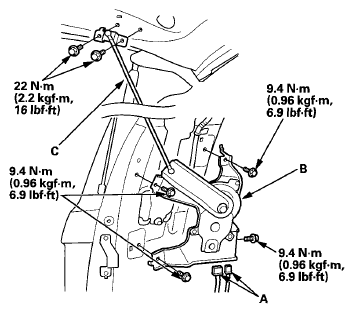

Fig 1: Drive Unit With 2P And 8P Connectors Terminals With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Carefully remove the bolts and support strut (C) from the tailgate.
Remove the mounting four bolts and drive unit.
Install in the reverse order of removal.
