Frame Repair Chart
›
Top View
Top View

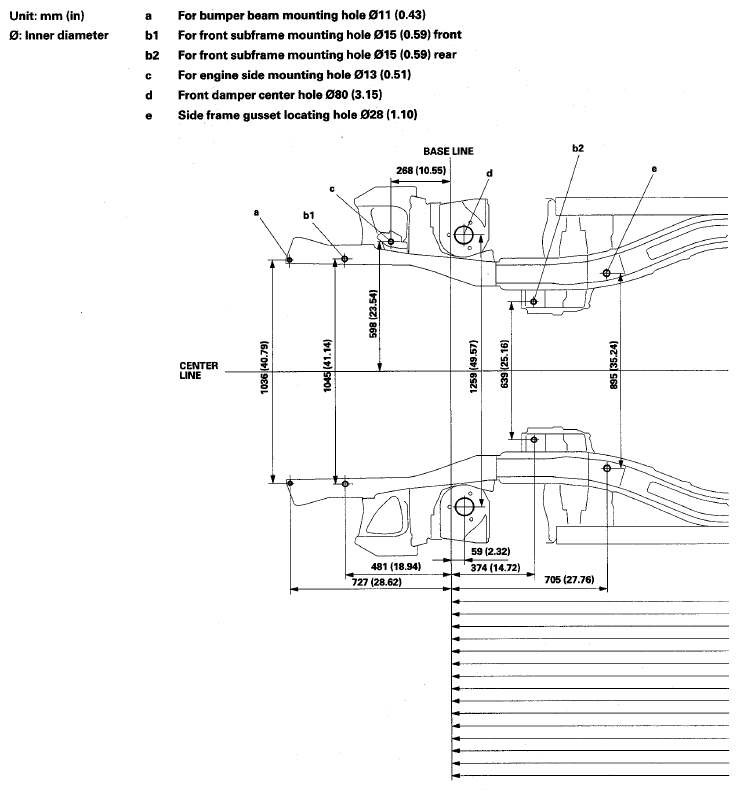

Fig 1: Frame Repair (Top View) - Chart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

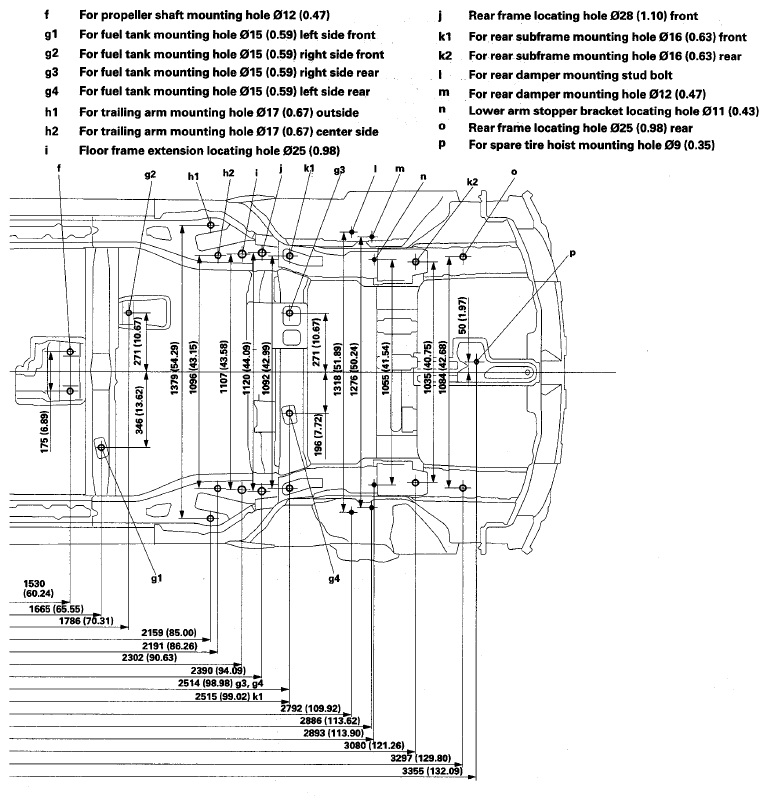

Fig 2: Frame Repair (Top View) - Chart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
