Circuit Diagram - Power Mirror

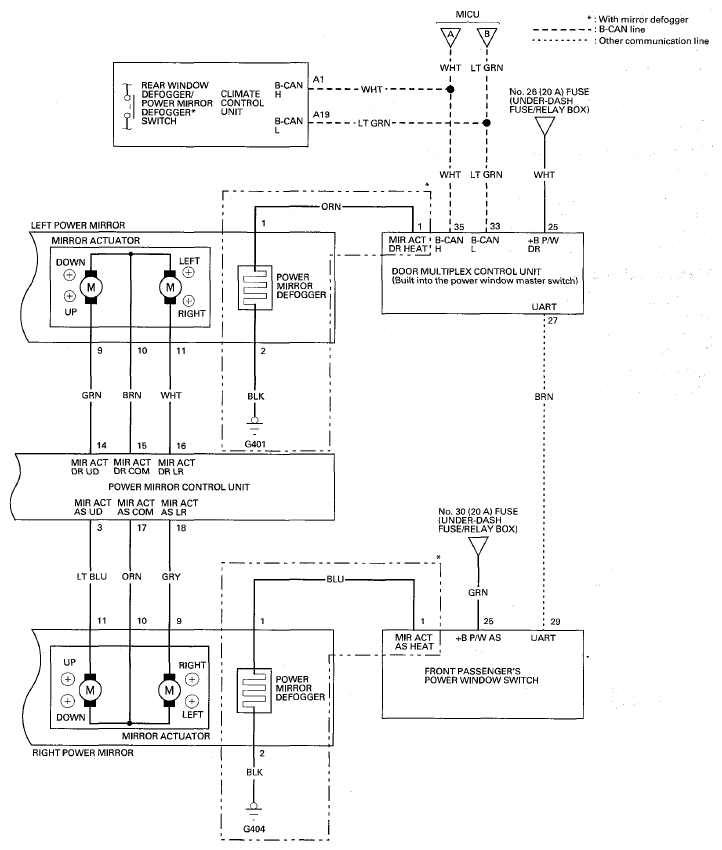

Fig 1: Power Mirror - Circuit Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

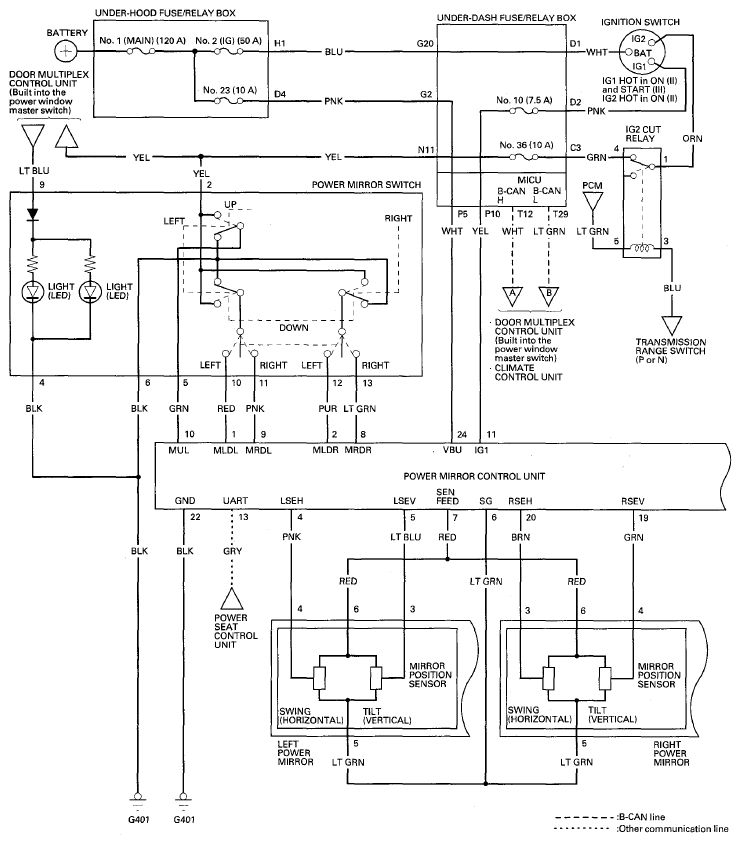

Fig 2: Power Mirror - Circuit Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
