Component Location Index
›
Notes
Component Location Index: Notes

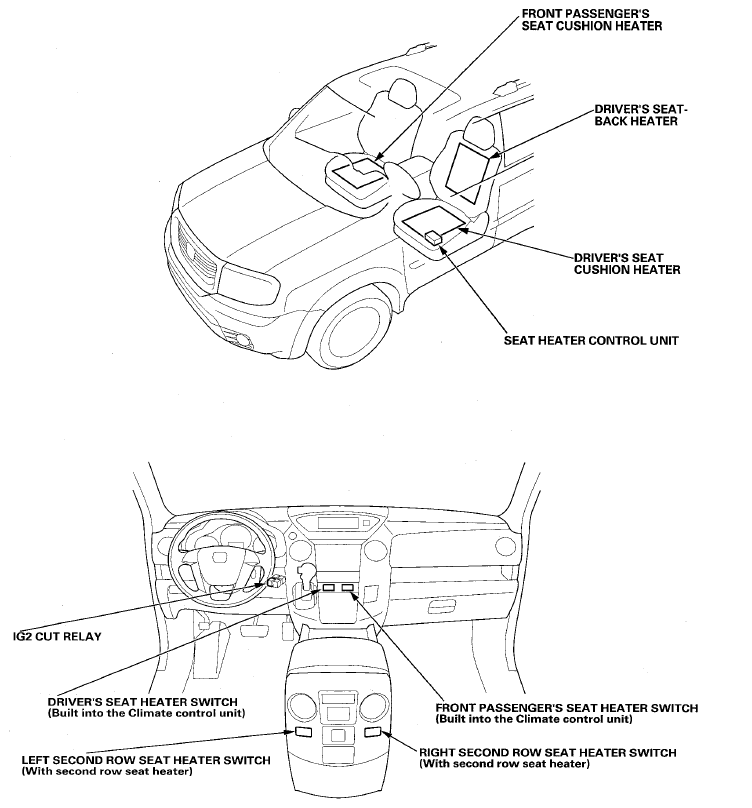

Fig 1: Identifying Seat Heaters Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
