Relay And Control Unit Locations
›
Dashboard
›
With navigation
With navigation

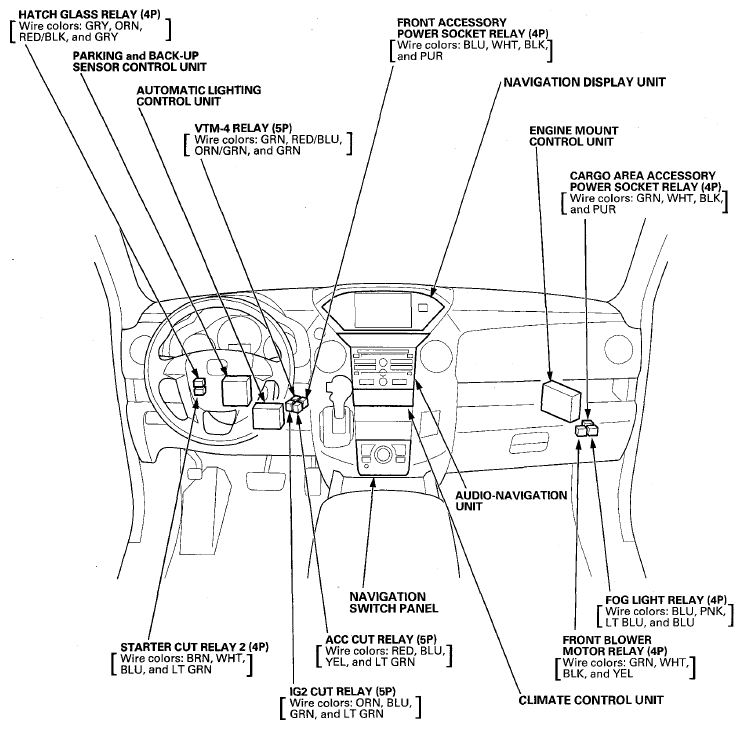

Fig 1: Dashboard Relay And Control Unit Locations (With Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
