Column Blind Cover Removal/Installation

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the column covers.
  • Do not pry the cover surface with any tools.
  1. Remove the column cover (see COLUMN COVER REMOVAL/INSTALLATION  ).
  2. Remove the bolts, then remove the column blind cover (A).

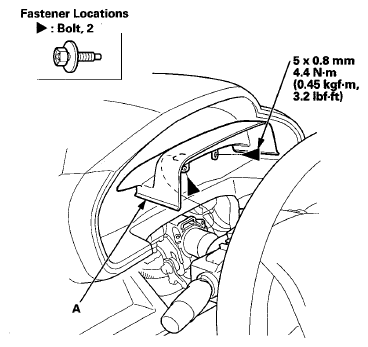

    Fig 1: Column Blind Cover With Torque Specifications
    G08089845Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the column blind cover in the reverse order of removal, and make sure the wire harness are not pinched before tightening the screws.
