2014
›
Pilot EX, FWD
›
Repair and Diagnosis
›
Electrical
›
Starter
›
Starting System
›
Circuit Diagram
Circuit Diagram

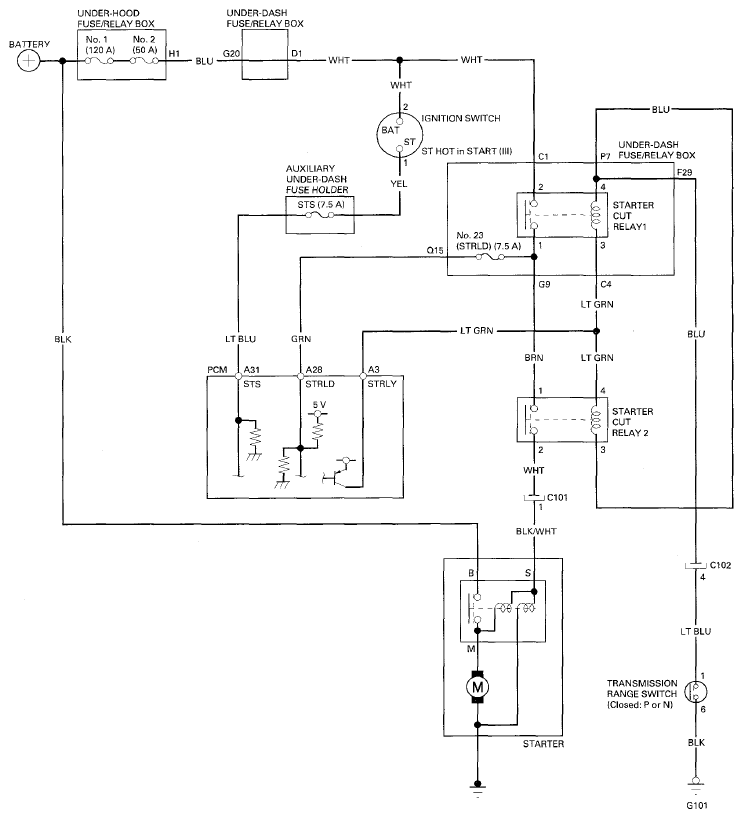

Fig 1: Starting System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
